This is a high performance 5GHz Broadband Dual Polarized Parabolic Dish Antenna. This 5GHz parabolic dish antenna supports the working frequency range from 4900MHz to 5900MHz, can be used in a wide variety of high performance 5GHz wireless applications. With high gain of 32dBi and
Dual Polarization (Horizontal and Vertical) design, the antenna will be perfect for long distance backhaul and point to point data links applications, MIMO and 802.11n Applications. The parabolic dish is rugged and weatherproof, with the heavy duty & engineered mounting kits, just making the antenna ideal for all-weather operation and any harsh environment.

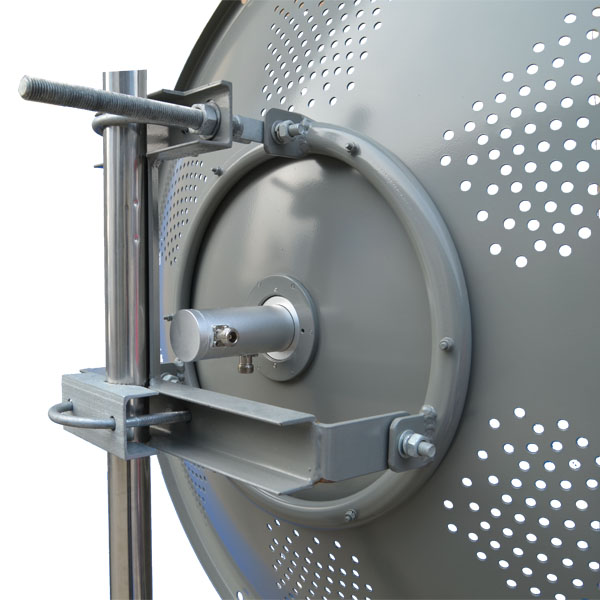

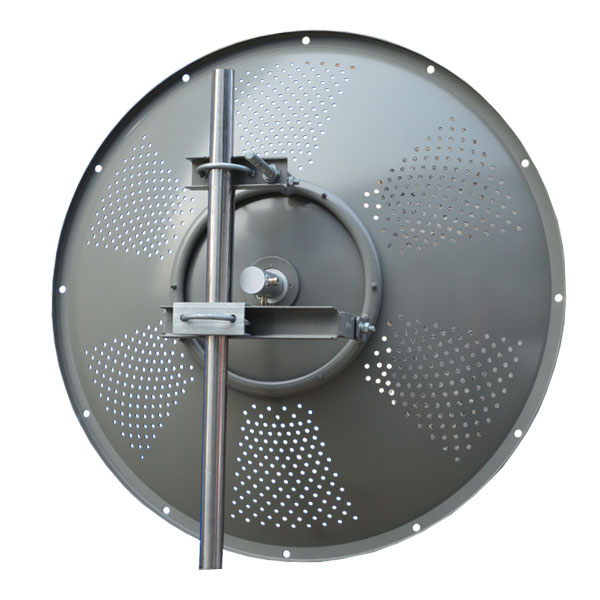

The Dual Polarized Parabolic Dish Antenna is compatible with the mainstream radios in the market, for example, Mimosa C5c, Ubiquiti Rocket M5, MikroTik BaseBox, Cambium ePMP, TP-Link WBS510. It'll be your perfect choice for WIFI access points and wireless bridges. The Parabolic Dish Antenna systems offered by Wireless are constructed of an aluminum alloy dish with powder coat paint finish for excellent mechanical. Perforated holes in the dish help minimize wind loading.
| Electrical | |
| Frequency Range | 4950-5850MHz |
| F/B Ratio | ≥40dB |
| Gain | 2x32dBi |
| V.S.W.R | ≤1.5,Max 2.0 |
| Radiation | Direction |
| Horizontal Beam width | 3.5° |
| Vertical Beam width | 3.5° |
| Polarization | Vertical and Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 2xN Female |
| Antenna Radome Material | Aluminium alloy |

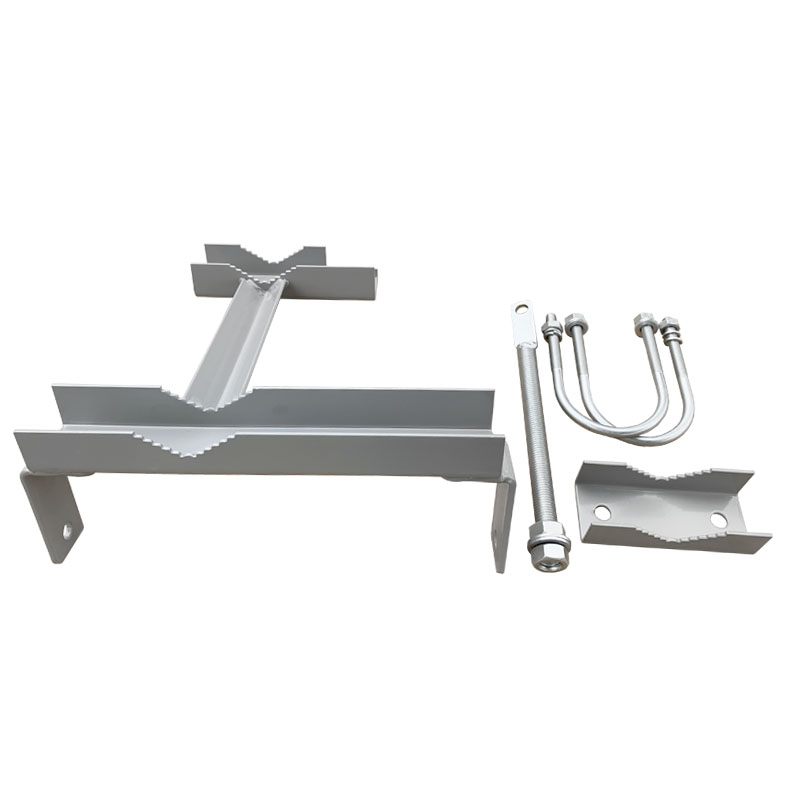

| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø50~70mm |
| Mechanical | |
| Dimensions | Φ900mm |
| Weight | 7.5KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |

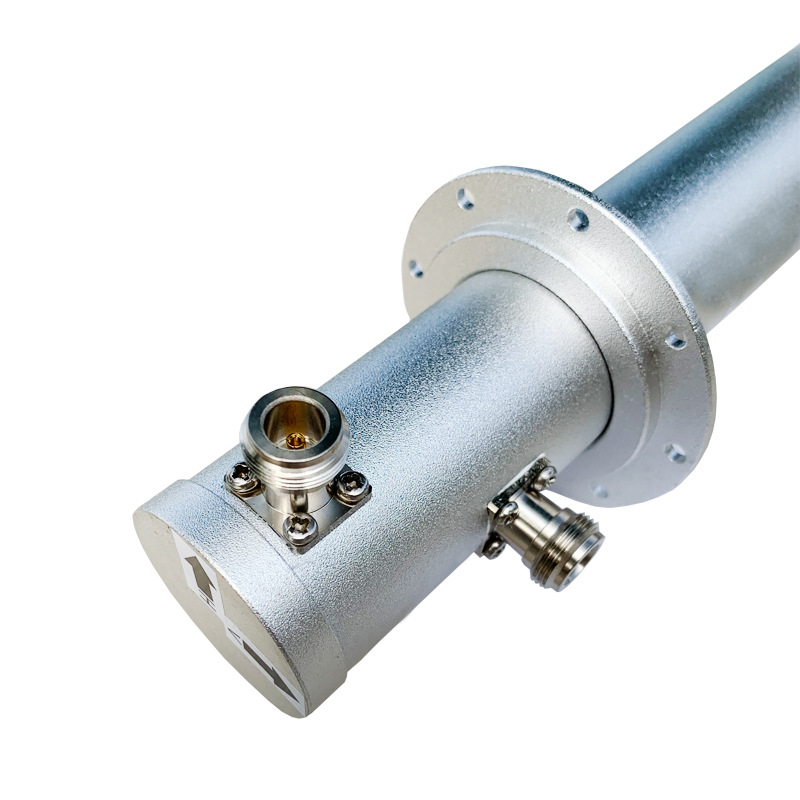

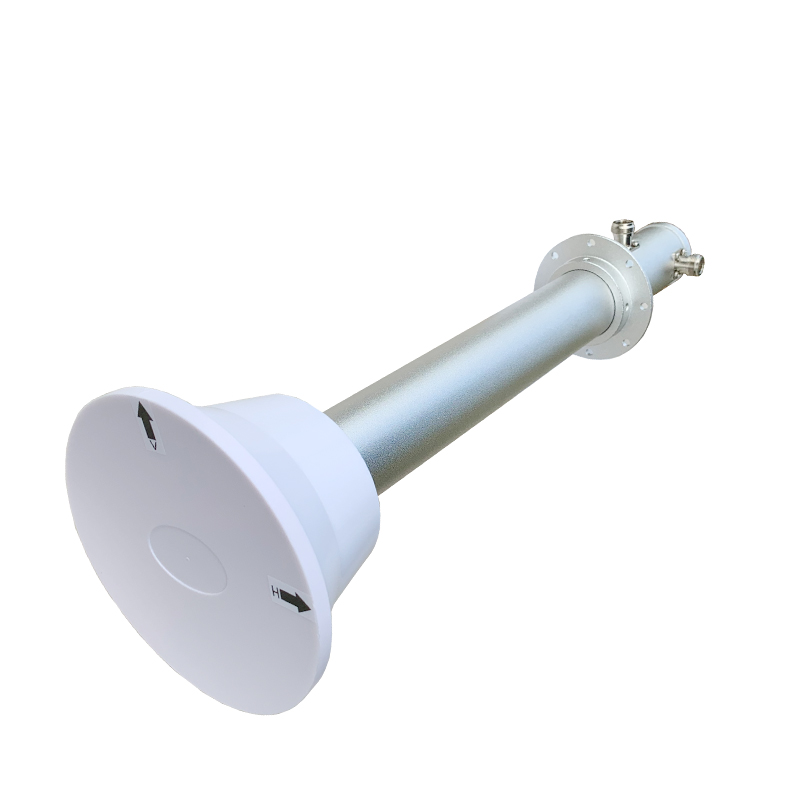

It is fed via two N-Female connectors, one for each polarized signals. This feature makes it ideal for MIMO/802.11n and polarization diversity systems.
Wireless Bridges Dual-polarised antenna feed with high isolation,It can extend the range of a wireless hotspot from 10-30 km.
The antenna offers excellent wind loading characteristics because of its dish design.
Wireless Internet Service Providers (WISPs): The 5GHz 32dBi 900MM Dish Antenna is ideal for WISPs to provide internet services over long distances, especially in rural or remote areas.
Long-Distance Communication: This antenna is designed for long-distance wireless communication, making it perfect for creating point-to-point links between buildings or across large areas.
Campus Networks: Universities, colleges, and large corporate campuses can use this antenna to establish high-speed wireless networks across their premises.
Surveillance Systems: The 5GHz 32dBi 900MM Dish Antenna can be used in wireless surveillance systems to ensure a stable connection and clear video transmission over long distances.
Public Wi-Fi Hotspots: These antennas can be used to provide public Wi-Fi in places like parks, shopping centers, or community centers, ensuring a strong and stable connection for users.
Telecommunication Networks: Telecommunication companies can use these antennas to establish backhaul links or to connect remote areas to their network.
Broadcasting: The 5GHz 32dBi 900MM Dish Antenna can be used for broadcasting signals over a large area, making it ideal for radio or television broadcasting stations.
Drones: In drone applications, this antenna can be used to enhance the communication between the drone and the controller, improving the range and stability of the connection.
