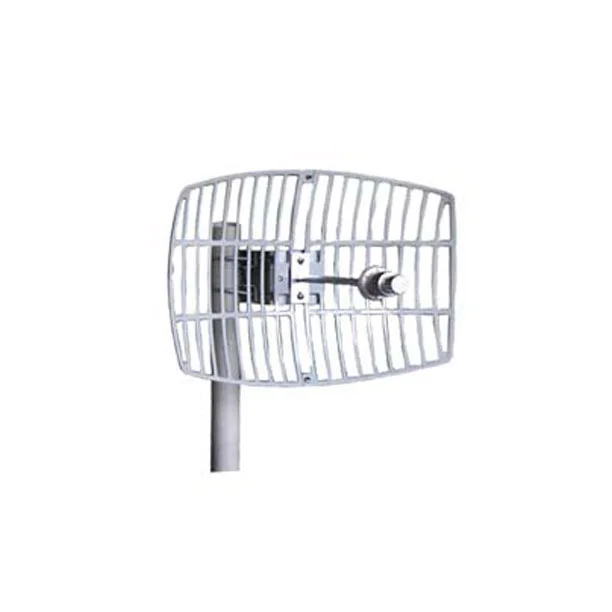

5Ghz ful band 24dBi Grid antenna is designed for the spread spectrum system.t dimension is incomplied with the plot of feed reflector. which ensure the antenna works in the best state.his antenna high gain, long range, light weight, compact structure and good command in wing resistance.
Outdoor antenna for public Hot spots installed for vertical or horizontal polarization Heavy Dutymounting. The reflector dish of these antennas are constructed from high quality aluminum which givesthem superior strength. The grud is coated in a light gray UV-inhibited polymer for durability and aestheticsTwo piece reflector grid is simple to assemble and significantly reduces shipping costs
| Electrical | |
| Frequency Range | 5725-5850MHz |
| F/B Ratio | ≥20dB |
| Gain | 24dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 9° |
| Vertical Beam width | 12° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Aluminum Alloy |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø50~Ø70mm |
| Mechanical | |
| Dimensions | 300x400mm |
| Weight | 1.4KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
These antennas are ideal for point-to-point systems, point to multi-point and wireless bridges. It can be installed for either vertical or horizontal polarisation.
This antenna features 24 dBi of gain with a 9 degree beam-width. It can be oriented for either vertical or horizontal polarization.
The grid is coated in a light gray UV-inhibited polymer for durability and aesthetics. Two piece reflector grid is simple to assemble and significantly reduces shipping costs.
