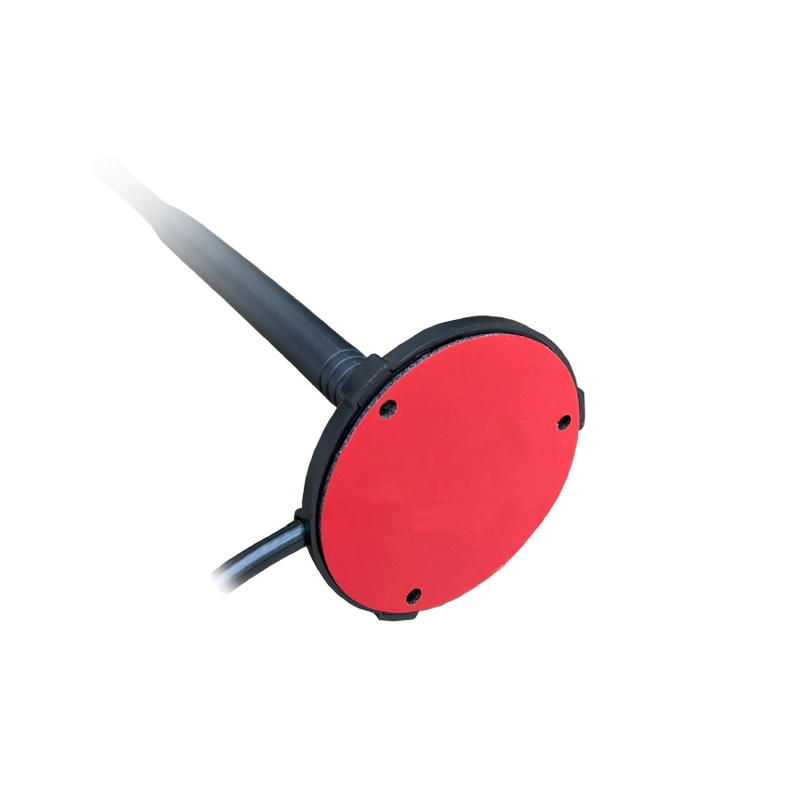

The SMA self-adhesive base antenna is equipped with a 3 meter LMR195 cable, which can be quickly and safely connected to metal surfaces,such as file cabinets, metal racks, and even the side of computer cases.This installation method is different from magnetic installation antennas, which can only be adsorbed on metal surfaces.Self adhesive and screw installation can position antennas on
wooden tabletops,glass and plastic surfaces to achieve optimal signal reception, providing stability and flexibility.Compatible with any wifi broadband router, modem, or amplifier/booster with SMA antenna jack,enabling antenna positioning to increase weak signal reception and improve poor network speed of remote cellular towers.
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 3/5/3dBi |
| V.S.W.R | ≤2.5;Max5@698MHz |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male(can be customization ) |
| Cable Type | LMR195 |
| Cable Length | 3M |
| Antenna Radome Material | ABS |
| Mounting way | Screw/Sticker |
| Mechanical | |
| Dimensions | Φ65x215mm |
| Weight | 151g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
Self-adhesive base antenna is equipped with a 3 meter LMR195 cable
Easy connected to metal surfaces,such as file cabinets, metal racks, and even the side of computer cases
The integrated design has a waterproof rating of up to IP68
