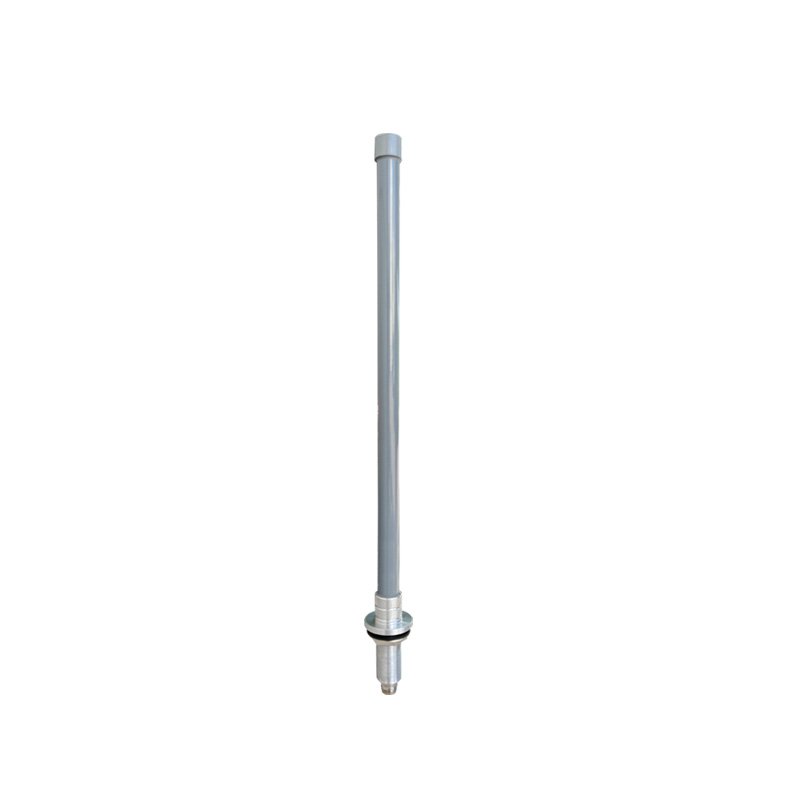

This omnidirectional WiFi dual band antenna is designed for the 2.4&5 GHz frequency band.
The enclosure of the antenna is made of heavy fiberglass.
The robust, light weight and UV resistant construction is weatherproof which makes the antenna usable for in- and outdoor appliances.
The antenna is designed for mast/pole or wall handle installation. A mounting kit installation(angle）bracket and u-clamp for 30-50mm diameter handles) is included.
| Electrical | |
| Frequency Range | 2400-2483/5150-5850 MHz |
| Band width | 83/700MHz |
| Gain | 4/7dBi |
| V.S.W.R | 2400-2483MHz ≤1.8; 5150-5850MHz≤2.0 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 35/25° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Φ30-50mm |
| Mechanical | |
| Antenna Dimension | Φ25x500mm |
| Weight | 300g |
| Operating Temperature | -40℃ to+60℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
The outdoor omnidirectional antenna with weatherproof housing and corrosion-resistant materials is designed to withstand damage from accidental impact.
No additional ground plane needed. Need to keep it as vertical as possible and high enough to get a better signal.
The installation mast is not included, only the Antenna kit.
