Networks Directional and multipoint applications superior Performance Good appearance designs
Outdoor antenna for public Hot spots Installed for vertical or horizontal polarization Heavy Duty mounting.
The Weight is light high gain and good sector pattern, petals small, vertical direction Angle is easy to control, reliable sealing performance and long service life.
High Gain H or V Polarization,Full day for working Durable,corrosion resistance Optimized dimension.
| Electrical | |
| Frequency Range | 4900-5850 MHz |
| F/B Ratio | ≥25 dB |
| Gain | 19 dBi |
| V.S.W.R | ≤1.8 |
| Radiation | Direction |
| Horizontal Beam width | 120° |
| Vertical Beam width | 4° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | PVC |

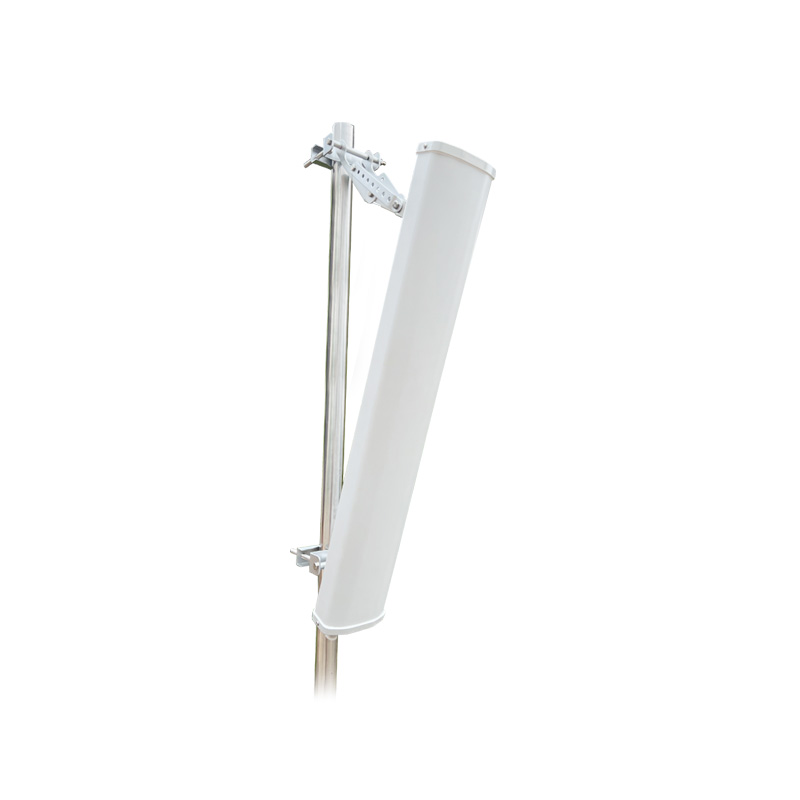

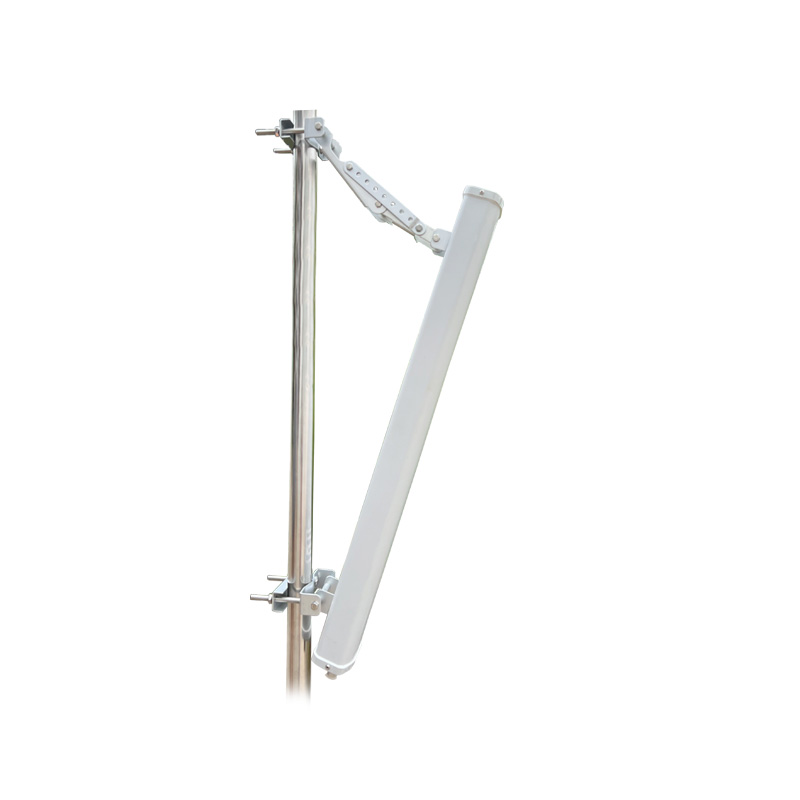

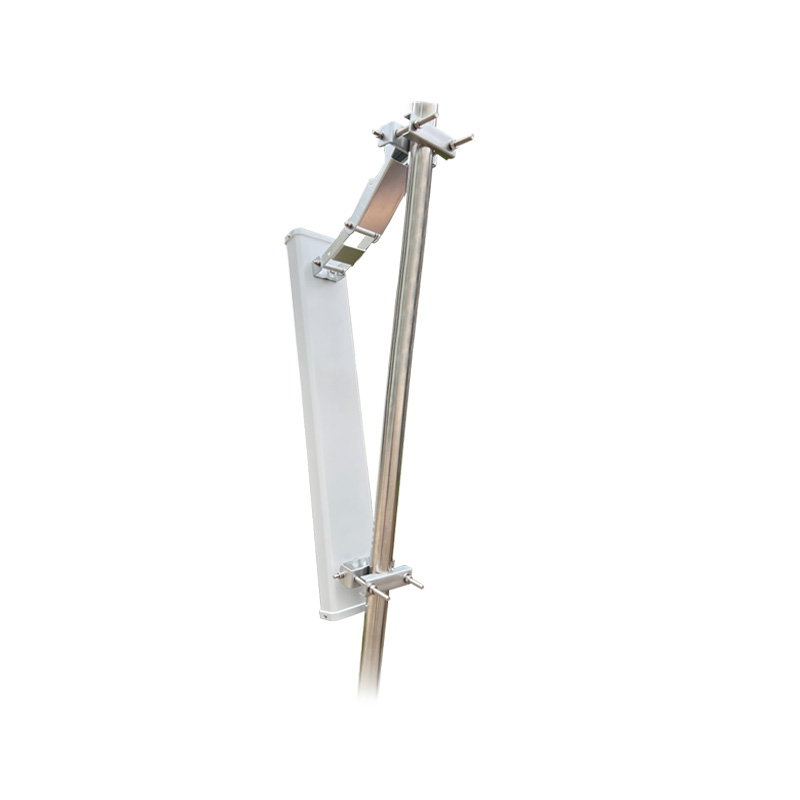

| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 700x130x60mm |
| Weight | 3KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
Click to see 5.8 GHz Sector Antenna list.
The covered of the sector antenna simplifying installation and protecting the connectors from rain and snow.
Required antenna mounting hardware and cables included.

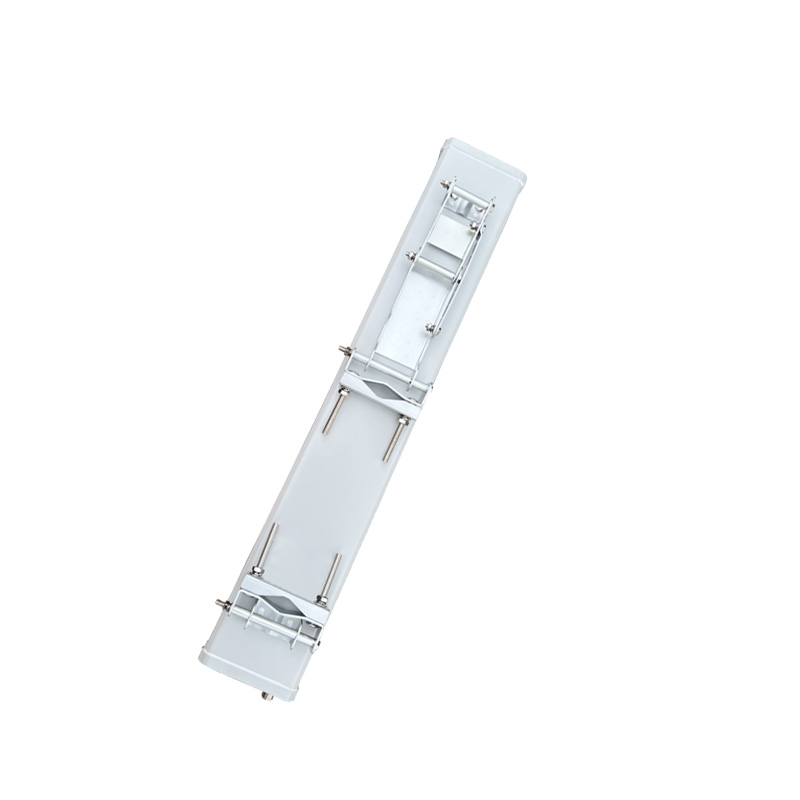

Onthe back of the sector antenna housing there is a sturdy mounting.
