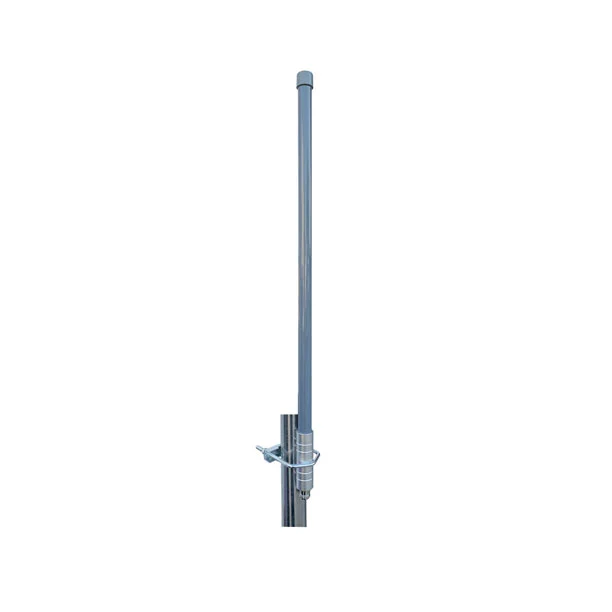

Omni-directional antennas are the right choice for situations where you need to be in contact with sources that are in two directions or if you do not know what direction the signals will be coming from.
They may be mounted right side up or tipped upside down depending upon the desired pattern.
They also feature a very versatile clamp mounting system that will fit most every situation you will encounter.
| Electrical | |
| Frequency Range | 5725-5850MHz |
| Gain | 12dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 7° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Ø20x680mm |
| Weight | 300g |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
The antenna is designed for use in the 5.8GHz frequency band and has a gain of 12dBi.
5ghz Omni-directional Antenna - 15dBi Omni antenna provides good all round reception for 5.1-5.8ghz WIFI networks.
This antenna normal use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.
