5GHz Applications WiMAX,CDMA 802.11 a WiFi Networks Frequency Ultra-wide Wireless LanSystems.Public Wireless Hotspot 802.16WiMax Networks Directional and multipoint applicationsSuperior Performance Good appearance designs Outdoor antenna for public Hot spots nstalled forvertical or horizontal.
A weather operation Can be installed for either vertical or horizontal polarization Back Haul andPoint-to-Point Installations

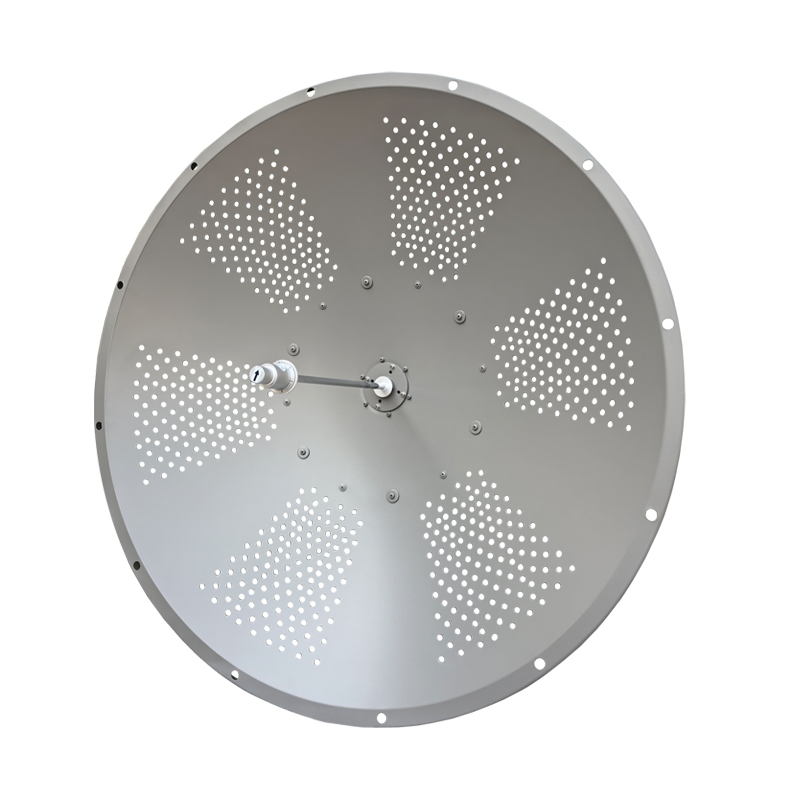

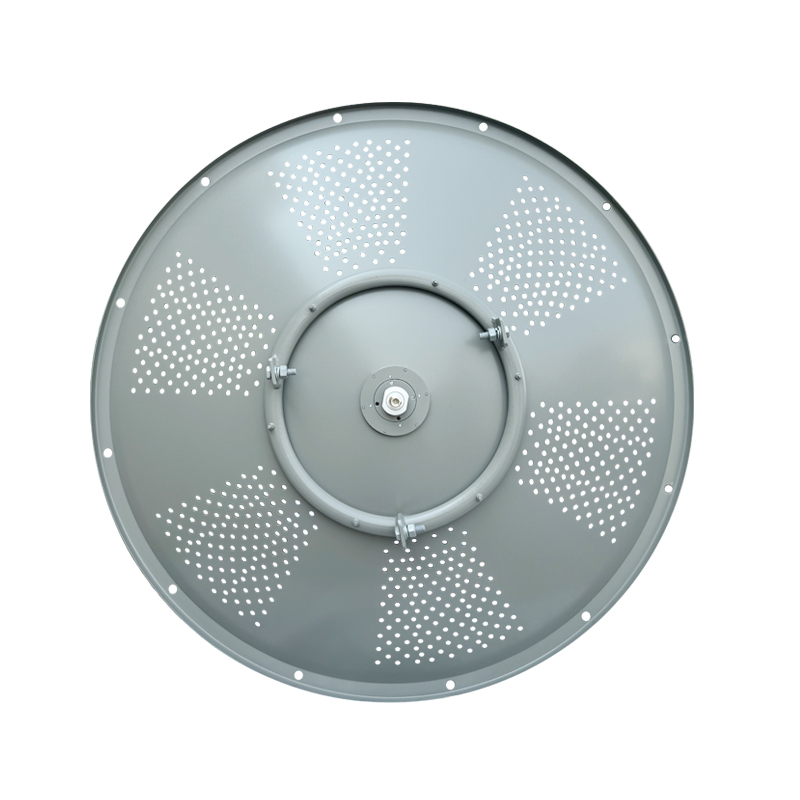

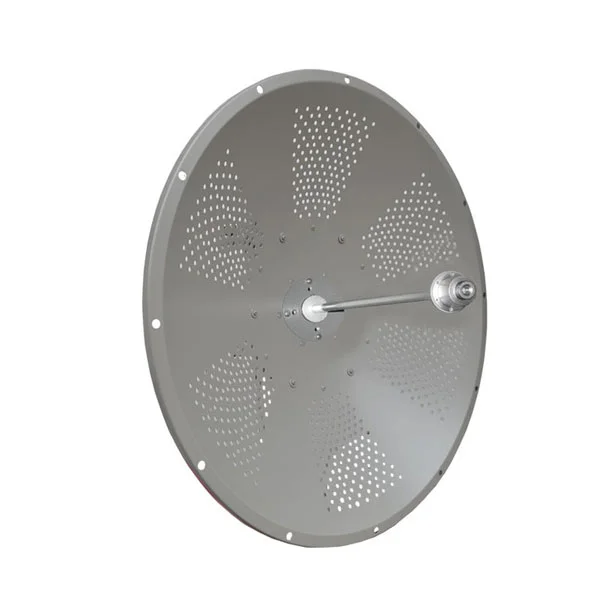

5725-5850Mhz Parabolic Antenna provided by Asian Creation Communications is constructedwith Lightweight aluminum with powder coating for excellent service life
| Electrical | |
| Frequency Range | 5725-5850MHz |
| F/B Ratio | ＞38dB |
| Gain | 32dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 4° |
| Vertical Beam width | 4° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Aluminum Alloy |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø50~Ø70mm |
| Mechanical | |
| Dimensions | Φ900mm |
| Weight | 6.5KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
The parabolic dish antenna can be used in a wide variety of high performance wireless applications.
These types of antennas have high gain and excellent front to back performance to minimize external disturbance.
Light weight aluminum, Heavy-duty mounting , Designed for all-weather operation.
