5GHz Applications WiMAX, CDMA 802.11 a WiFi Networks Frequency Ultra-wide Wireless LanSystems.Public Wireless Hotspot 802.16WiMax Networks Directional and multipoint applicationsSuperior Performance Good appearance designs Outdoor antenna for public Hot spots nstalled forvertical or horizontal.
All weather operation Can be installed for either vertical or horizontal polarization Back Haul andPoint-to-Point Installations.
With high gain of 32dBi and Vertical or Horizontal Polarization design, the antenna will be perfect forlong distance backhaul and point to point data links applications
| Electrical | |
| Frequency Range | 5150-5850MHz |
| F/B Ratio | ＞38dB |
| Gain | 32dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 4° |
| Vertical Beam width | 4° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Aluminum Alloy |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø50~Ø70mm |
| Mechanical | |
| Dimensions | Φ900mm |
| Weight | 6.5KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |

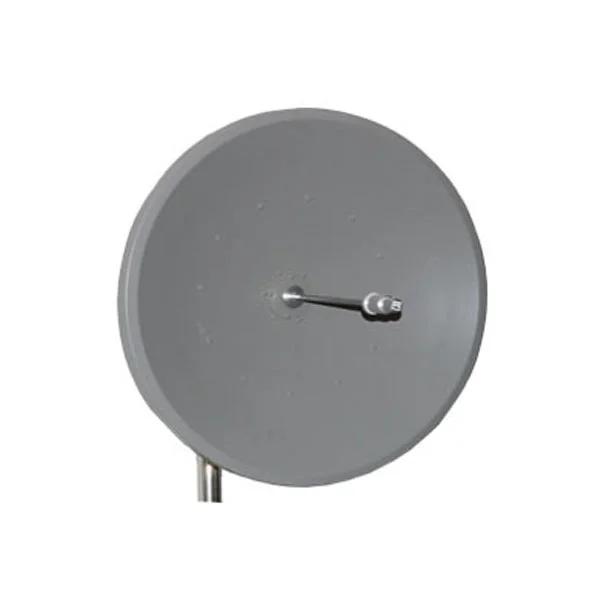

The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics. Perforated holes in the dish helps minimize wind loading.
High performance 32 dBi dish antenna ideal for long range directional applications.
This is a high performance 5GHz Broadband Dual Polarized Parabolic Dish Antenna and supports the working frequency range from 4900MHz to 5900MHz.
