The antenna is a five port antenna with two elements designed to cover the 698-960 and 1710-2700 MHz cellular bands, two elements designed to cover the 2.4-2.5 and 4.9-5.85 GHz WLAN bands and one GPS element.
The antenna can be mounted on the roof of a vehicle or fixed structure.
The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.
This antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.
The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance.
The cables are low loss allowing for lengths of up to 10 meters , critical for buses, trains and other commercial transport applications.
Customized cables and connectorversion available.
| Electrical | ||
| GPS Part: | Dielectric Antenna | |
| Frequency Range | 1575.42MHz±3 MHz/1602-1610MHz | |
| Polarization Type | RHCP | |
| Gain | 5dBi | |
| V.S.W.R | <2.0 | |
| Impedance | 50Ώ | |
| LNA | ||
| LNA Gain | 28±2dB Typical | |
| Noise Figure | 1.5dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| V.S.W.R | ＜2.0 | |
| Voltage | 2.7/3.0/3.3/5.0/3.0 to 5.0 etc. | |
| Current Consumption(mA) | 11 Max | |
| Impedance | 50Ώ | |
| DC current | 5-15mA | |
| WIFI Part: | Frequency range | 2.4/5GHZ |
| V.S.W.R | ＜2.0 | |
| Gain | 7dBi | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| LTE Part: | Frequency range | 698-960MHz, 1710-2700MHz |
| V.S.W.R | 2 Max | |
| Gain | 3/5/7dBi | |
| Polarization | Vertical | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | GPS: RG174 LTE&WIFI: RG58 | |
| Length | 3m standard, fully customizable | |
| Connector | SMA(M) standard, fully customizable | |
| Environmental | ||
| Operation Temperature | -40℃~+85℃ | |
| Humidity | 65%-95%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw Mount | |
| Antenna Dimension | Ф140×84.5mm | |
| Weight | 1.2KG | |
| RoHS Compliant | YES | |

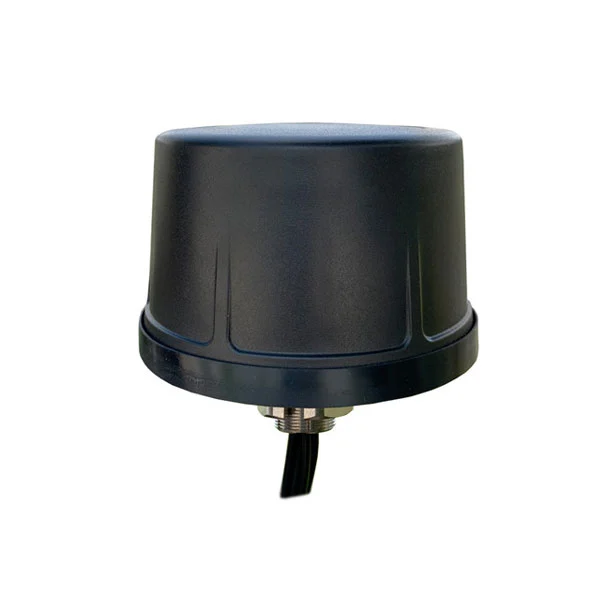

The low profile housing measures only 85 mm in height and is manufactured with IP67 rated ABS UV stable material offering durability with the highest level of protection against water and moisture exposure.
This combination antenna are standard SMA-Male (5GNR)/ SMA-Male-RP (WiFi-6E ISM) and come with 300cm long RG58 (5GNR/WiFi-6E ISM) cables, but can be customized as needed.
All the cables feed from bottom of the antenna housing and are tuned for optimal performance.
