This antenna has a wide-band response and can also be used for other cellular and wireless applications such as GSM, LTE, UMTS, and WI-FI.

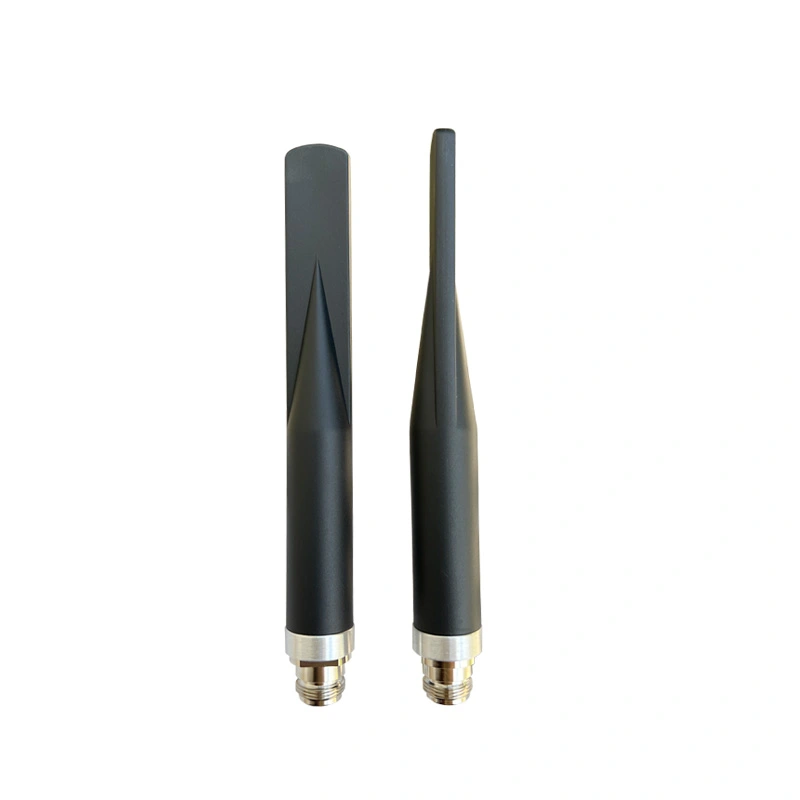

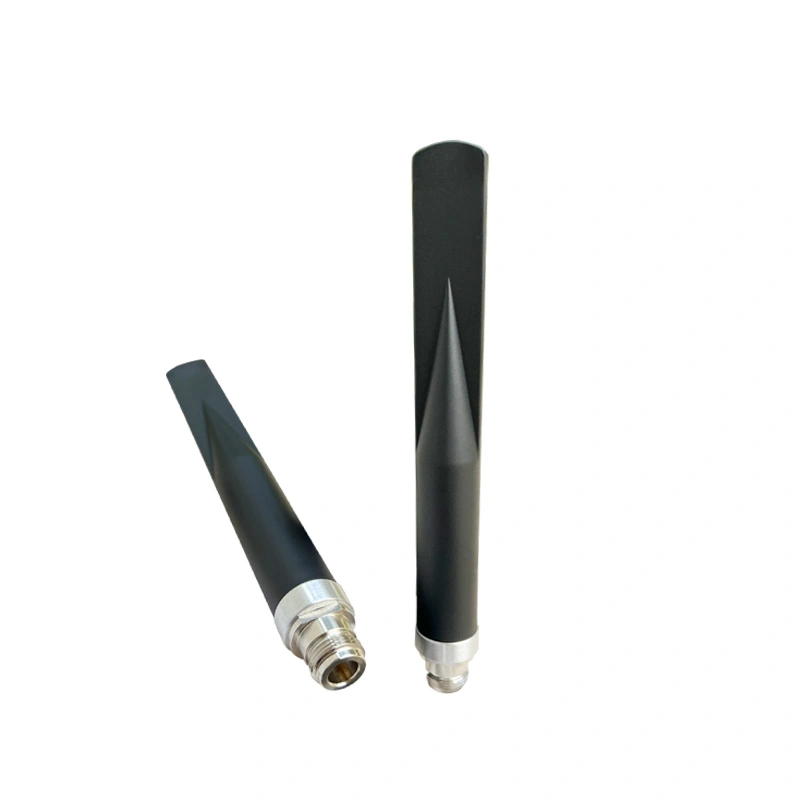

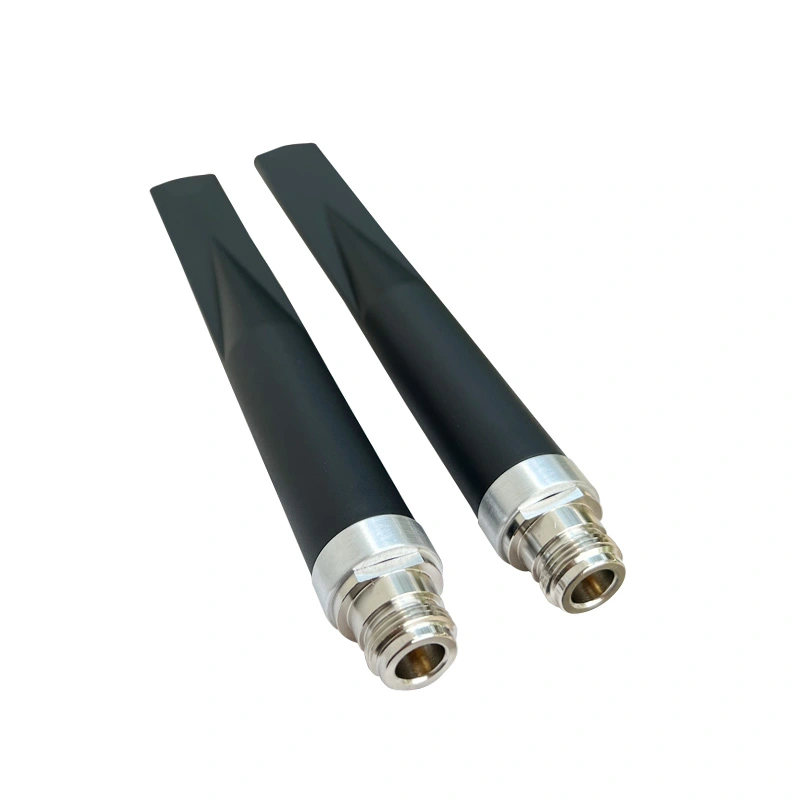

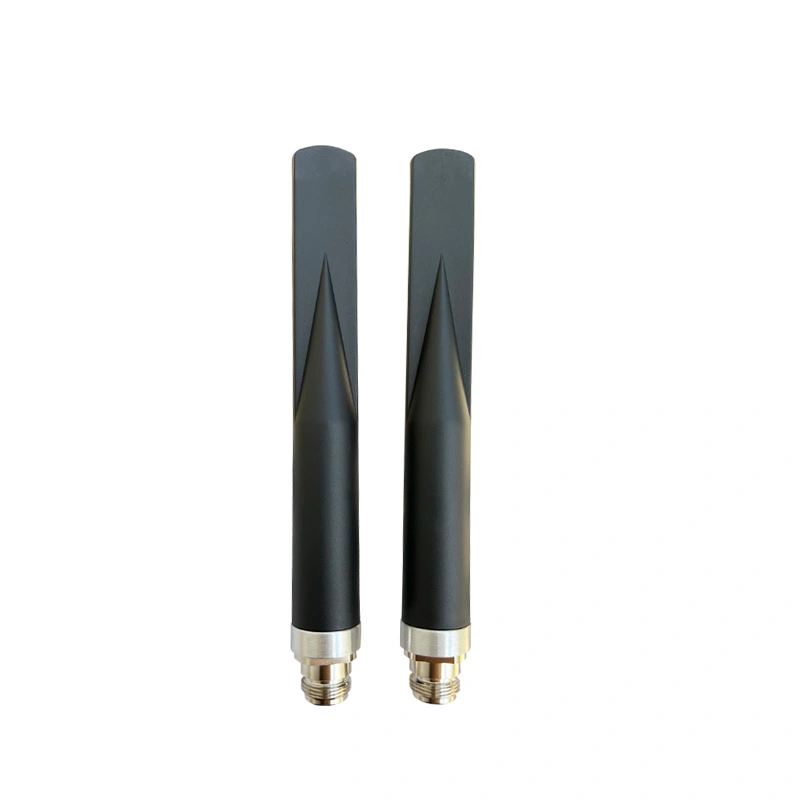

This 4G LTE whip antenna is vertically polarized with an omnidirectional radiation pattern.This antenna does not need to be connected to the ground-plane of a device to radiate efficiently and neither is it in any way detuned by connecting to a ground-plane.It has a quality TPE housing ,linear polarized can be made very small and light weight,especially useful for weight-critical application .
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 3/4dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | TPE |
| Mechanical | |
| Dimensions | Φ22x177mm |
| Weight | 53g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
Wideband 4G/3G/2G dipole antenna
Cover all sub LTE,GSM,UMTS,Cellular,ISM with frequencies in the 698-2700MHz
Vertically polarized with an omnidirectional radiation pattern
