This Whip Antenna 4G vehicle antenna through-hole Screw Mount Design,it is the classic 285mm.
Whip made from the stainless steel,which resists bending and kinking.This stainless steel that provides high strength and hardness,excellent fatigue properties,good corrosion resistance 4G/LTE whip type antennas for industrial, retail,and commercial radios applications.
These antennas support Wi-Fi,Bluetooth®,ZigBee®,and IEEE 802.15.4 for personal area networks.
They come with a variety of termination options,including RP-SMA male or female,MMCX male etc.
They can be mounted via connector, panel, or magnetic base.
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 7dBi |
| V.S.W.R | ≤2.5@698-960MHz;≤1.8@1710-2700MHz |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG58U |
| Cable Length | 3M |
| Antenna Radome Material | Steel |
| Mounting Way | Wall Mount |
| Mechanical | |
| Dimensions | Φ22x305mm |
| Weight | 142g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
4G vehicle antenna through-hole Screw Mount Design

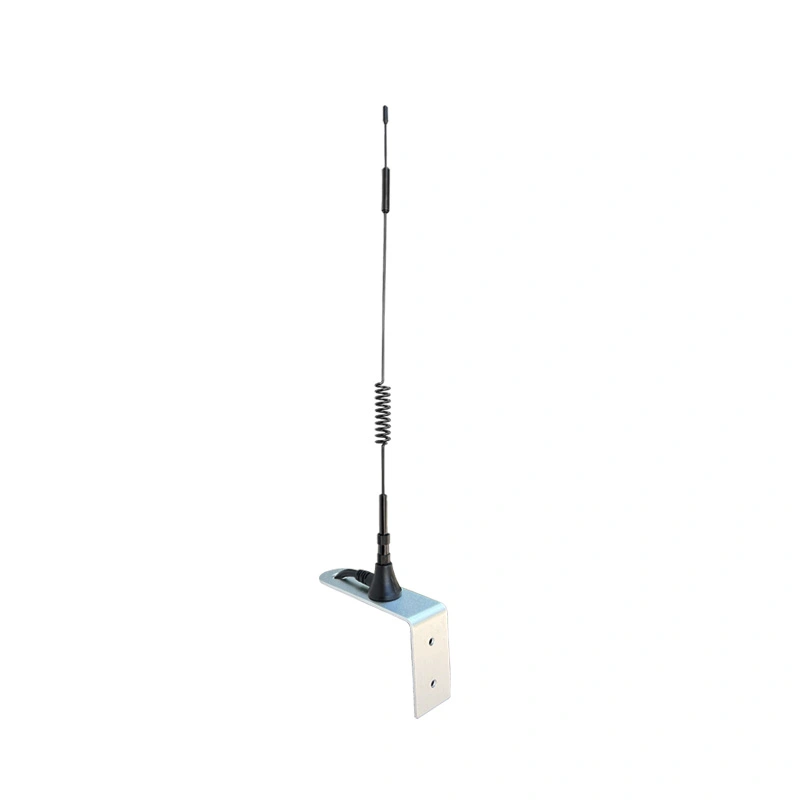

285mm height 7dbi high gain L bracket antenna
These antennas support Wi-Fi,Bluetooth®,ZigBee®,and IEEE 802.15.4 for personal area networks
