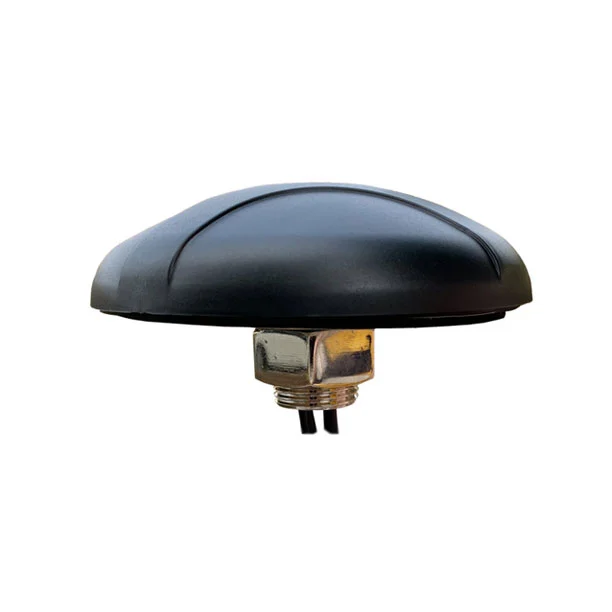

This M2M antenna provides optimal 4G LTE MIMO coverage in a single, extra low-profile housing.
Its compact footprint makes this antenna ideal for installation on surfaces with limited surface space, including leading public safety vehicle rooftops and many machine-to-machine applications.
No tune, multi-band coverage: dual 4G LTE, 802.11ac Wi-Fi and GSM/3G frequencies IP67 compliant design provides maximum protection against water or dust ingress under Extra low-profile, UV-resistant black or white housing options complement most vehicular aesthetic requirements
| Electrical | |
| Frequency Range | 2x698-960/1710-2700MHz |
| Gain | 2x3dBi |
| V.S.W.R | ≤2.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | 2xSMA Male |
| Cable Type | RG174 |
| Cable Length | 2x3M |
| Antenna Radome Material | ABS |
| Mounting way | Screw Mount |
| Mechanical | |
| Dimensions | Φ48x82mm |
| Weight | 160g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range is 698-2700MHz.
The antenna normal is supplied with two 3m cables with SMA-RP(f) and SMA(m) connectors.
This 2-in-1 antenna boasts 2×2 MIMO LTE within the same enclosure, while keeping implementation as simple as possible with its many mounting options.
