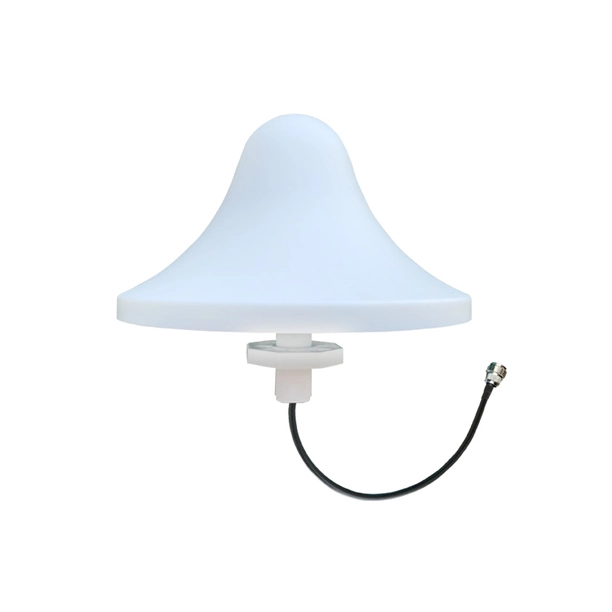

The 4G/LTE ceiling mount omni-directional DAS antenna delivers high performance across all cellular bands from 698MHz to 2700MHz and provides a gain of up to 5dBi.
The antenna measures 218x43mm and is supplied with a 30 cm cable with N-type female connector.
These low-profile omni-directional antennas is good ideal applications include in-building public safety, retail establishments, enterprise networks, public "hot spots" and facilities management.
| Electrical | |
| Frequency Range | 800-960/1710-2700MHz |
| Gain | 2.5/5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 91° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N female |
| Cable Type | RG58U |
| Cable Length | 30CM |
| Antenna Radome Material | ABS |
| Mounting way | Ceiling Mount |
| Mechanical | |
| Dimensions | Φ165x105mm |
| Weight | 0.5KG |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
This is the 800-2700mhz Indoor Ceiling Antenna, 50ohm Directional Cellular Ceiling Mount Wifi Antenna.
This high performance antenna gives 360°coverage in the horizontal plane, with a down directed vertical beam width of 60°.
For indoor applications which require maximum performance and minimum visibility, Asian Creation provides state-of-the-art ceiling mount antennas.
