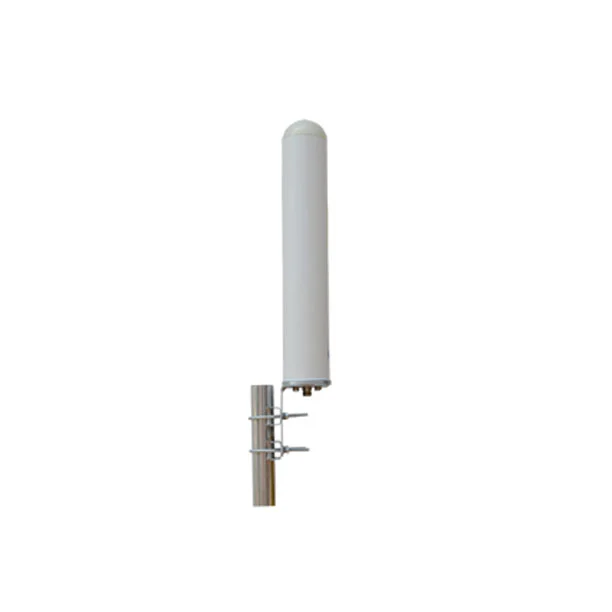

This antenna is ideal for downtown urban settings, RV's or marine installations.
It's built with a strong fiberglass casing and is designed to cover 2G/3G/4Gand WLAN systems for Cellular, PCS, AWS and LTE frequencies.
This Full Band Fiberglass antenna is an omni-directional antenna that gathers signals from all sides and does not need to be pointed toward a cellular tower.
Parts includes mounting equipment for either a flat horizontal surface or a wall.
It shall be mounted in an upright position for best results.
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 4/6dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 18° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | PVC |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Φ75x460mm |
| Weight | 1.2KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated wind velocity(m/s) | 60m/s |
| RoHS Compliant | YES |
Robust design suitable for outdoor applications,including marine environments,with wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications.
This is a great antenna covering many popular frequencies for example 698-2700MHz in use today.
Its radome is UV and water resistant making it a great outdoor antenna.
