Weatherproof multiband 3G / 4G and 5G LTE omnidirectional antenna, is designed for all 3G, 4G and 5G frequency bands used . The antenna can therefore be used universally and increases the range, the signal strength and the transmission rate of your data connection through the performance gain of up to 5dBi. Due to the omnidirectional characteristics of the LTE / 5G antenna, it does not have to be aligned separately but can be easily installed.
The antenna is suitable for outdoor use and can therefore easily be used as a 5G outdoor antenna.
A mounting set is included in the scope of delivery.

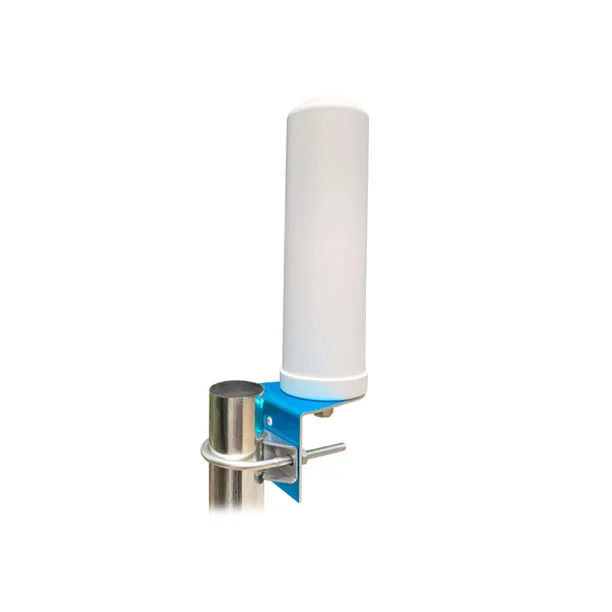

The antenna can be attached to a mast (diameter: 30mm - 50mm) or a corresponding bracket using two pipe clamps.Optionally, you can order an antenna cable from us to connect to your LTE or 5G router and/or a window bushing to match the antenna.
| Electrical | |
| Frequency Range | 600-960/1710-6000MHz |
| Gain | 3/5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 18° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | ABS |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Φ63x220mm |
| Weight | 608g |
| Operating Temperature | -40℃ to+70℃ |
| Rated wind velocity(m/s) | 60m/s |
| RoHS Compliant | YES |
The 5G antenna has been designed with a moderate gain (3/5dBi). It is lightweight at around 0.6KG but is designed to easily withstand winds of over 60m/s.
Operating on two bands 698-960MHz/1710-6000MHz covering all 2G, 3G, and 4G/5G LTE cellular bands with high gain and high efficiency.
It is also it ideal for use at 900MHz and 2.4GHz for WiFi and Wireless Video applications.
