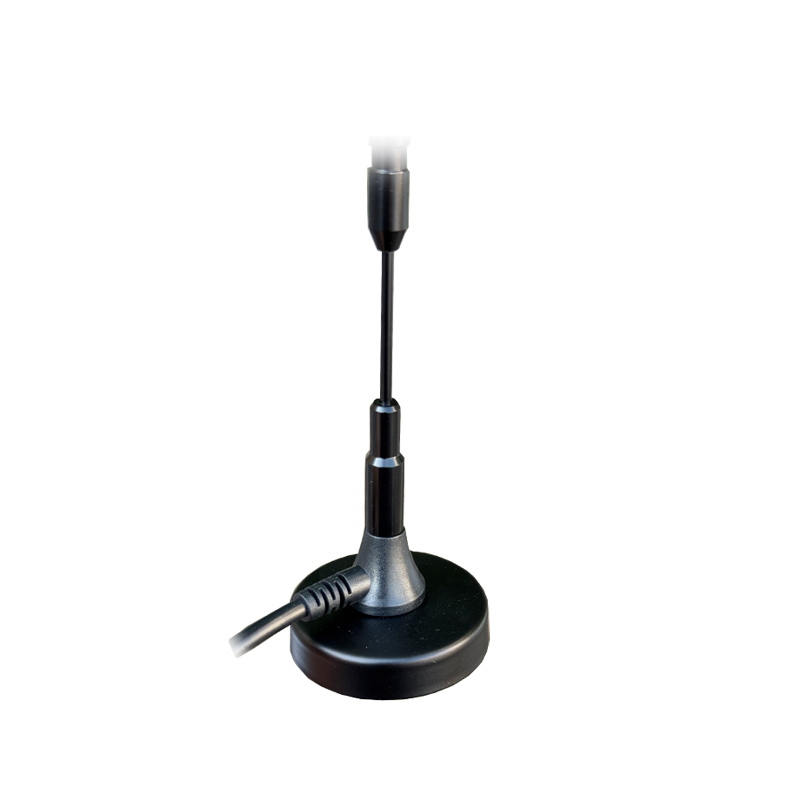

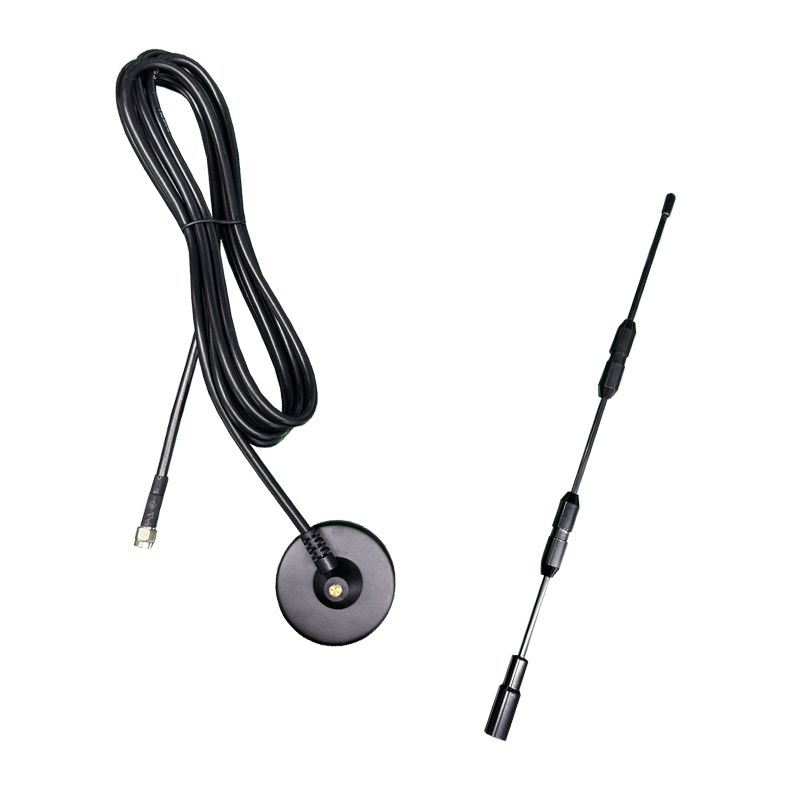

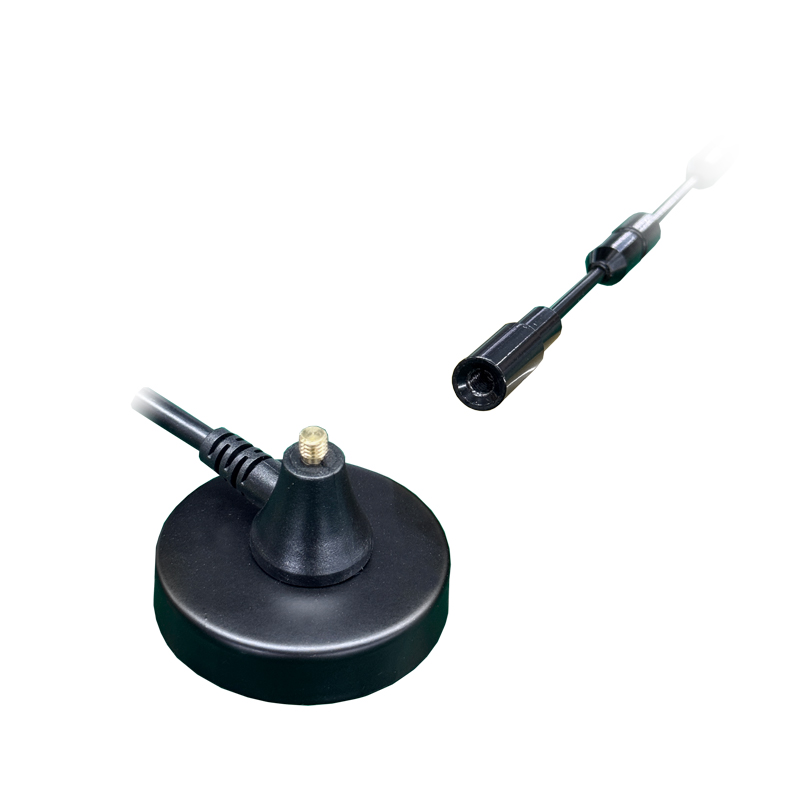

This is an ultra wideband magnetic antenna with frequencies ranging include 698-960/1710-2700MHz, 3300-3800MHz, 5750-6000MHz. 297mm long and especially easilly seen in embedded RF applications, it is external and not used in inner device or module.
This antenna can be customized per customers different request like cable type and cable length.
LTE magnetic Mount Antennas are highly engineered and sensitive mobile antennas.
They are made of sturdy anodized metal and stainless steel for maximum weather protection.
It is best suited to vehicles with obstructions on the roof where some vertical height is required.
| Electrical | |
| Frequency Range | 698-960/1700-6000MHz |
| Gain | 7dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG174 |
| Cable Length | 3M |
| Antenna Radome Material | Steel wire |
| Mount way | Magnetic |
| Mechanical | |
| Dimensions | Φ53x297mm |
| Weight | 204g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
It will get the most signal to and from your connected cellular devices such as signal boosters, hotspots and routers.
The Mini Cellular Antenna works well as a 5G CBRS Antenna and mounts on metal surfaces that are free from obstacles which could cause signal interference.
Its main benefits over our other antennas are its 5G CBRS Frequency coverage, ease of installation, the ability to quickly move it from place to place and its compact size.
