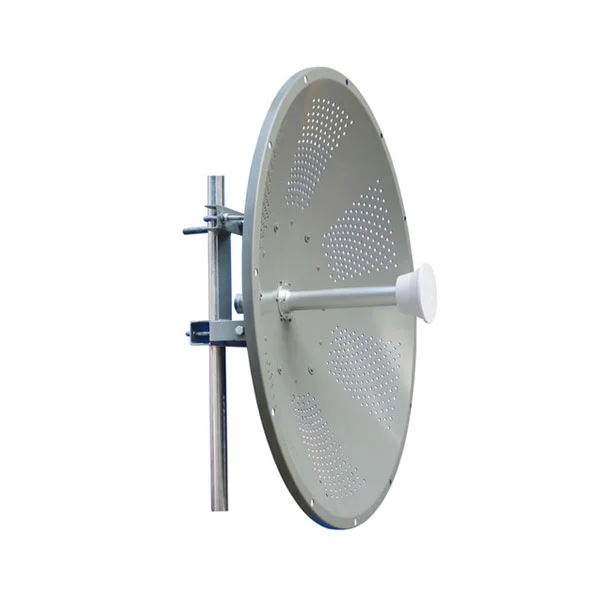

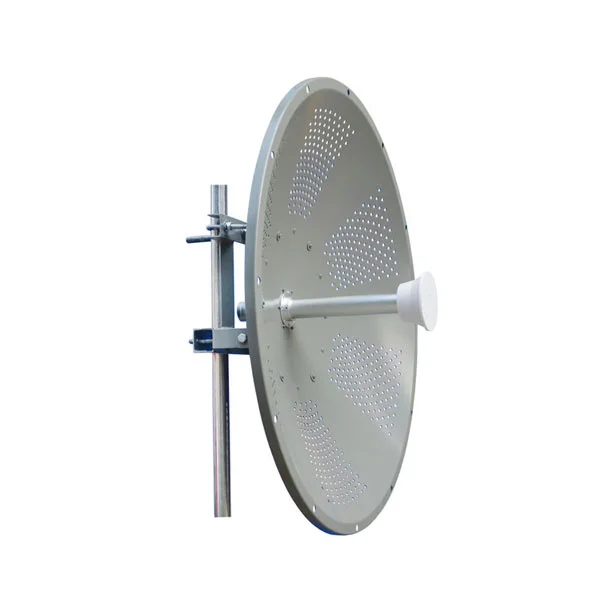

The 30 dBi parabolic dish antenna operating from 3.5 -3.8 GHz includes dual horizontal and verticapolarization and provides 30 dBi high gain with a focused main beam of3 degree beamwidth that hasminimal side-lobes and back-lobes that outperform similiar sized flat panels.This parabolic antenna comes with a pair of pre-attached, 30cm rg142 pig-tail cables with N-femaleconnectors which simplifes installation and minimizes taping. Use this parabolic antenna over a filatpanel antenna to maximize the potential of your radio by improving signal strength and reducing thenoise floor in your link.
| Electrical | |
| Frequency Range | 3300-3800MHz |
| F/B Ratio | ≥25dB |
| Gain | 30dBi |
| V.S.W.R | ≤2.0 |
| Isolation | 22db |
| Horizontal Beam width | 3° |
| Vertical Beam width | 3° |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 2xN Female |
| Cable Type | RG142 |
| Cable Length | 30CM |
| Antenna Radome Material | Aluminium alloy |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø50~Ø70mm |
| Mechanical | |
| Dimensions | Φ1200mm |
| Weight | 25KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
This antenna includes dual horizontal and vertical polarization and provides 30 dBi gain with a focused main beam of 3 degree beamwidth.
Our parabolic antennas 2x2 MIMO in the 3.5 GHz Citizens Broadband Radio Service (CBRS) frequency band supports LTE deployments in the CBRS 3.3 - 3.8 GHz spectrum.
Parabolic dish antennas are also better efficient at transmitting and receiving signals than other antennas.
