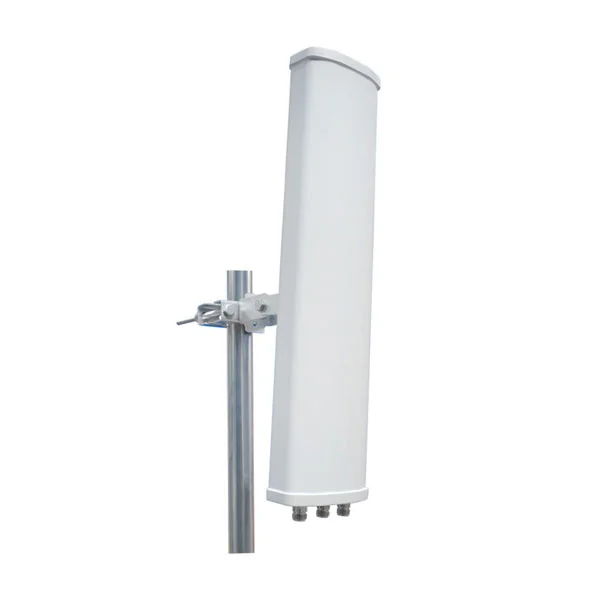

Full band Sector antennas are an industrial grade cross polarised antenna series designed for 5GHz WiFi networks.
The antennas carrier grade construction features a light colour PVC radome for durability and aesthetics.
The included mounting system features heavy-duty mount for pole mounting applications.
This antenna features 2x N Female connectors.
| Electrical | |
| Frequency Range | 4950-5850MHz |
| F/B Ratio | ≥20dB |
| Gain | 2x20dBi |
| V.S.W.R | <1.5Type; Max 2.0 |
| Radiation | Direction |
| Horizontal Beam width | 90° |
| Vertical Beam width | 4° |
| Polarization | Vertical and Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 2xN Female |
| Antenna Radome Material | PVC |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 725x130x60mm |
| Weight | 3KG |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
The reflector is usually flat with some ridges or other features along the edges.
Grounding is very important for an outdoor antenna so all metal parts are DC-grounded.
They are long, narrow antennas with high gains and long range singnal cover .
