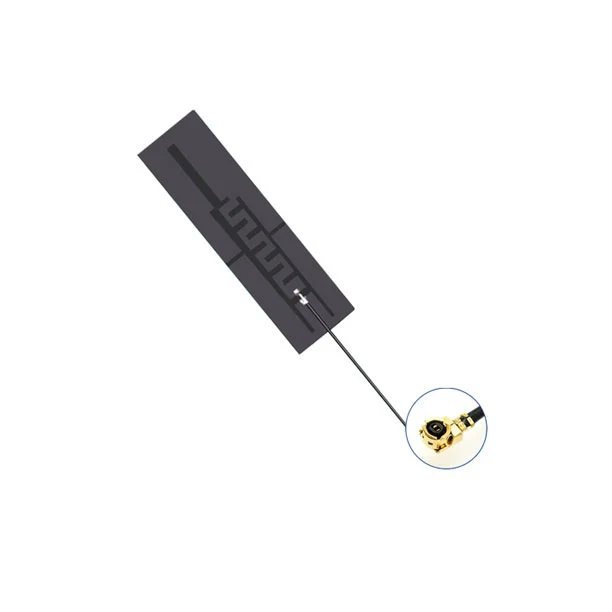

This FPC antenna is suitable for 458-462MHz applications. Ground plane independent, it's designed for flexible mounting on the underside of any non-metallic housing with a cable and connector for easy installation. The flexibility and adhesive backing make the series easier to mount in RF-transparent – for example plastic – enclosures, enabling environmental sealing and protection from antenna damage.
We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.10cm 1.13 cable and u.fl connector is standard configuration
| Electrical | |
| Frequency Range | 458-462MHz |
| Band width | 4MHz |
| Gain | 2.5dBi |
| V.S.W.R | ≤1.5 |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | 1.13cable |
| Cable Length | 10cm |
| Antenna Radome Material | FPC |
| Mount way | Adhesive |
| Mechanical | |
| Dimensions | 20x70x0.2mm |
| Weight | 1g |
| Operating Temperature | -40℃ to+70℃ |
| Humidity | +15-70%RH |
| RoHS Compliant | YES |
It has a tightly controlled product ecosystem that caters to the smart home and smart building space, such as lighting control, security systems and thermostats.
Highly efficient printed circuit board (FPC) design Designed for omni-directional applications, Low profile, compact size.
3M adhesive backed for application on non-metallic surfaces.
