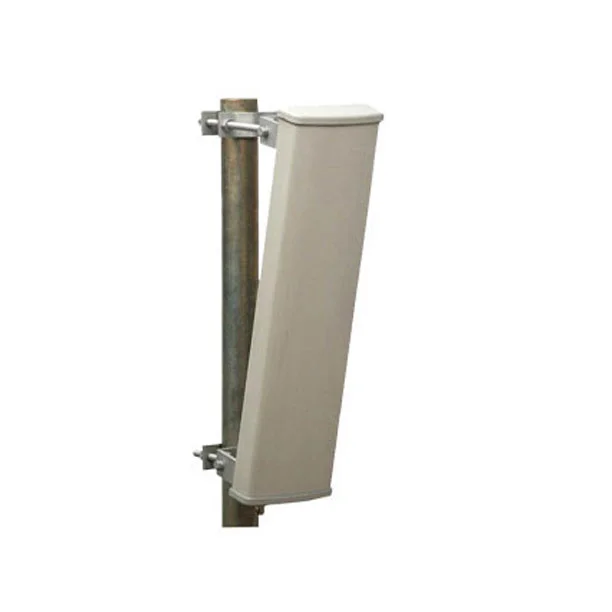

Standard models of the AC-D433V08-120 are gray in color with a textured finish.PVC radome finish, color and texture can be provided to complement and blend within any environment.
A variety of standard and custom mounting configurations are available.
The mounting configurations can provide fixed or variable pointing angle. The RF input connector and/or cable combination may be specified by the customer.
| Electrical | |
| Frequency Range | 433MHz |
| Band width | ±3MHz |
| Gain | 8dBi |
| F/B Ratio | ≥25dB |
| Horizontal Beam width | 120° |
| Vertical Beam width | 7° |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Lightning Protection | DC Grounded |
| Polarization | Vertical |
| Maximum Input Power | 200W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | PVC |
| Mounting Way | Pole Mount |
| Diameter of Installation Pole | Φ30-50mm |
| Mechanical | |
| Antenna Dimension | 1100x280x140mm |
| Weight | 10.25KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | YES |
This VHF UHF Sector antenna with a high gain of 8 dBi, 120 Degrees, and a vertical polarization.
The sector antenna support within 433MHz Broadband UHF applications.
Asian Creation supplies the antenna accessories such as RF power amplifiers and repeaters, RF connectors and adapters, cable assemblies.
