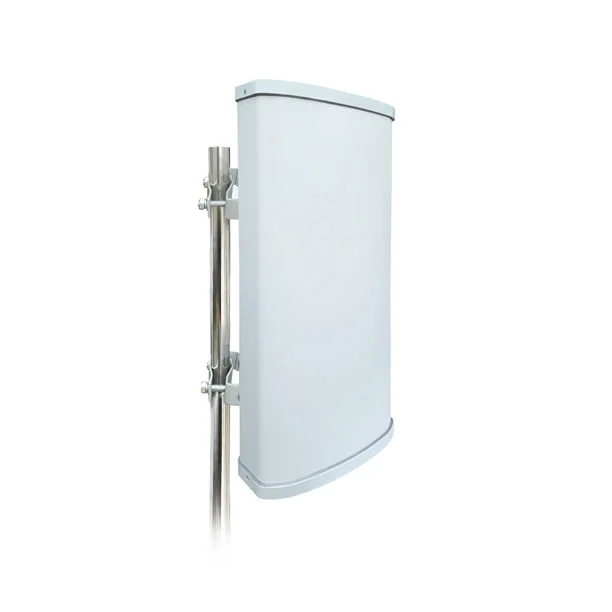

Standard models of the AC-D433V8-65 are gray in color with a textured finish.PVC radome finish, color and texture can be provided to complement and blend within any environment.
A variety of standard and custom mounting configurations are available.
The mounting configurations can provide fixed or variable pointing angle. The RF input connector and/or cable combination may be specified by the customer.
| Electrical | |
| Frequency Range | 433MHz |
| Band width | ±3MHz |
| Gain | 8dBi |
| Horizontal Beam width | 65° |
| Vertical Beam width | 30° |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Lightning Protection | DC Grounded |
| Polarization | Vertical |
| Maximum Input Power | 200W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | PVC |
| Mount way | Pole |
| Diameter of Installation Pole | Φ30-50mm |
| Mechanical | |
| Antenna Dimension | 600x286x130mm |
| Weight | 7KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | YES |
Sectors are usually deployed higher up in the air and the height of deployment helps select the required antenna, as this impacts the gain and range of the antenna.
They are most often used by Base-Stations and can be seen, hung on cell phone towers.
Sector antennas consist of an array of dipoles placed in front of a shaped reflector.
