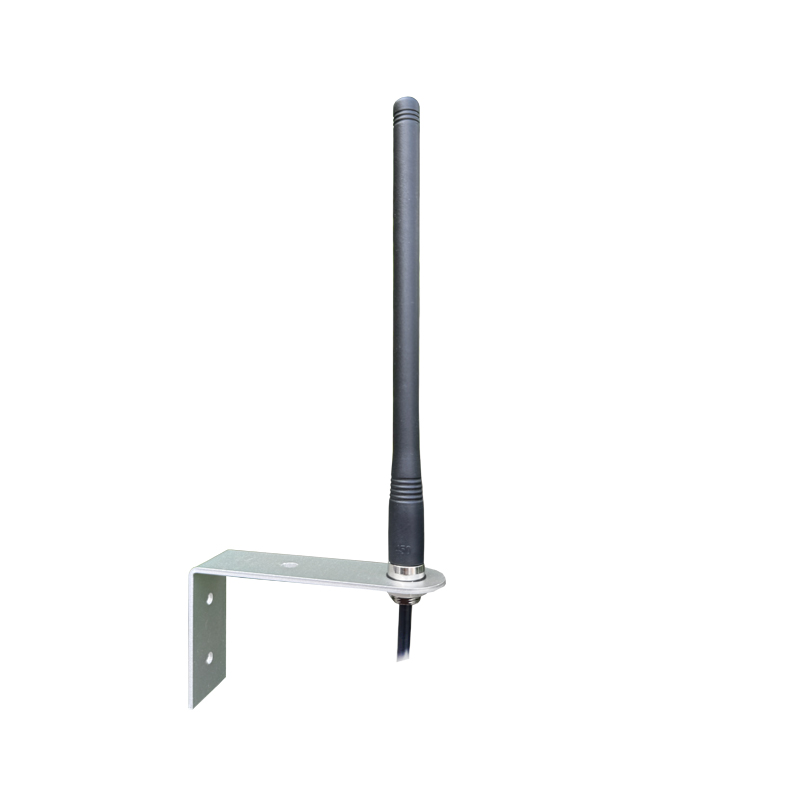

This type wall mount directional antenna is Compact and light weight with Vertical Polarization that in 433MHz frequency.
Use them with the communication equipment and an antenna tracker to increase range and Received Signal Strength Indication. Also works great for telemetry receivers The antenna is ideal for both indoor and outdoor applications. Being Bracket mount it is designed to be mounted on a ground plane for optimal performance Cable and Connector can be Customed.
| Electrical | |
| Frequency Range | 433MHz |
| Band width | ±5MHz |
| Gain | 6dBi |
| V.S.W.R | ≤1.5 |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | ABS |
| Mounting way | Wall Mount |
| Mechanical | |
| Dimensions | 207x180x45mm |
| Weight | 550g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
A compact Wall mounting Gain Antenna for 433MHz applications where high performance is required from a small size.
Using this Wall mounting antenna will give optimum range and reliability to your application.
This type wall mount antenna compatible with Metering Emergency Response Low Power Equipment application.
