Power Splitter, Broadband High Bandwidth 800 - 2500 MHz GSM900, CDMA, GSM1800 and UMTS.
These 2-way power splitters are individually designed to be used with GSM900, CDMA, GSM1800 and UMTS.
The power splitter is designed to equally split one input signal into 2, 3 or 4 outputs. When building an indoor coverage system the splitter is often used to split signals between floors and antennas.
The functionality of handling both transmitting and receiving signals in the same path is highly beneficial since the TX signal is split and the RX signal is combined in the same stage and component.
| Electrical Specifications | |
| Freq | 800-2500MHz |
| Insertion Loss | ≤3.8dB |
| IsolationB | ≥20dB |
| VSWR | ≤1.5 |
| Max input power/port | 10W |
| Impedance in/out | 50Ω |
| Mechanical Specifications | |
| Dimensions (W x H x D) | 96x80x16mm |
| Weight | 230g |
| Connector | SMA Female |
| Environmental Specifications | |
| Temp. range (normal operation) | -40 to +70℃ |
| Humidity | Relative 5 - 95% |
| Sealing | IP65 |

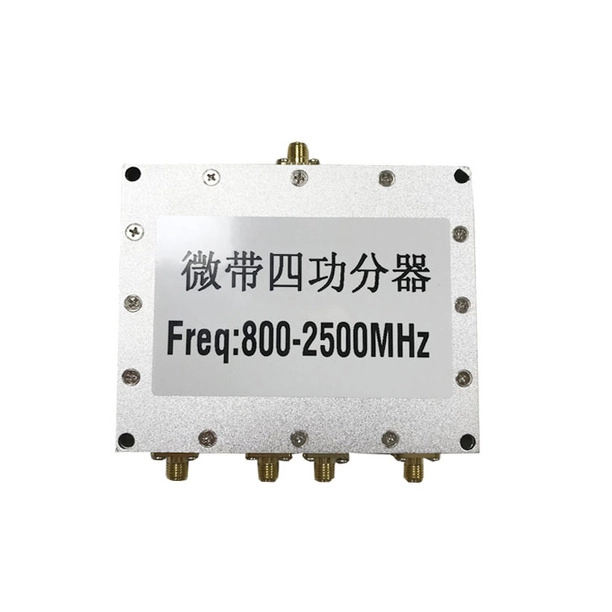

Four way SMA female microstrip power splitter 800-2500MHZ can work for verizon, A T&T, any carriers.
Using microstrip structures, in-band flatness is good, high isolation, insertion loss is small, standing wave good performance, easy installation.
It's for cellular mobile communications and spread spectrum communications in indoor distribution system.
Asian Creation pays attention to the quality and service. We Keeping progressing, Pursuing integrity, Embracing future. Our teams arelways enthusiastic and welcome to visit us and join hands for a prosperous future.
