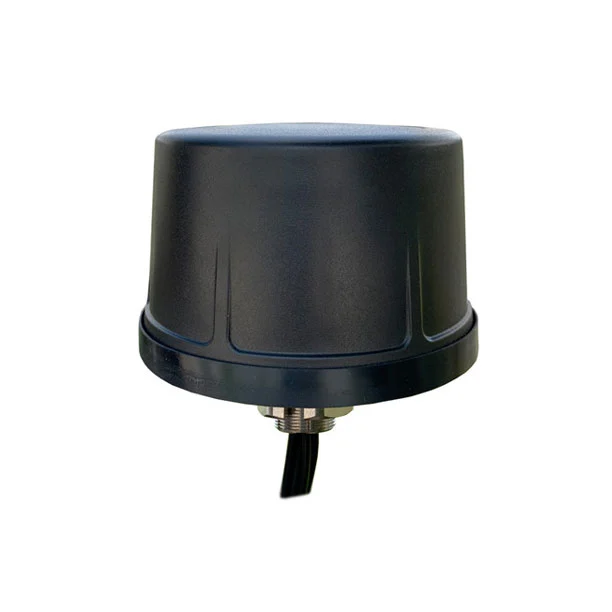

The antenna is a four port antenna designed to cover the 2400-2500 and 4900-5850 MHz.
The antenna can be mounted on the roof of a vehicle or fixed structure.
The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.
This antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.
The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance.
The cables are low loss allowing for lengths of up to 10 meters , critical for buses, trains and other commercial transport applications.
Customized cables and connectorversion available.
| Electrical | ||
| LTE Part: | Frequency range | 2400-2500MHz/4900-5850MHzX4 |
| V.S.W.R | ＜2.0 | |
| Gain | 3/5dBi | |
| Polarization | Vertical | |
| Impendance | 50Ω | |
| Mechanical&Environmental | Housing | Black |
| Cable | LMR195 | |
| Length | 2m | |
| Connector | N femaleX4 | |
| Operation Temperature | -40℃ to+85℃ | |
| Humidity | 65%-95%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | PC | |
| Mounting way | Screw Mount | |
| Antenna Dimension | Ф140×84.5mm | |
| Weight | 1KG | |
All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
Manufactured with high-quality ABS UV stable material, the IP67 compliant design provides maximum protection in extreme outdoor applications while maintaining exceptional performance.
All cables are a popular choice for good return loss, insertion loss and amplitude stability.
