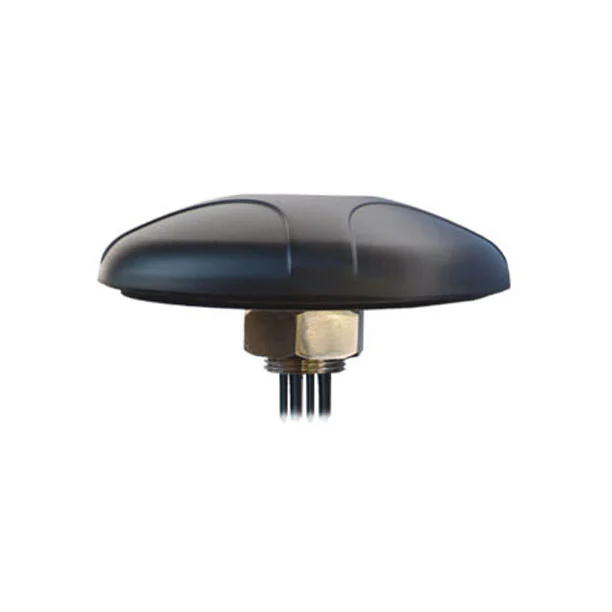

This antenna is a heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.
It is unique in the market because it with high efficiency in a compact format. This antenna screws down in permanently onto a roof or metal panel and can be pole or wall-mounted with a metal bracket.
For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, it provides a robust, rugged antenna that is durable, even in extreme environments.
| Electrical | ||
| Frequency range | 2400-2483MHzX4 | |
| V.S.W.R | <2.0 | |
| Gain | 3dBi | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | 4xRG174 | |
| Length | 4x3M | |
| Connector | 3xSMA Male | |
| Environmental | ||
| Working Temp | -40℃~+80'℃ | |
| Humidity | 95%~100%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw Mount | |
| Antenna Dimension | Ф143.6x65mm | |
| Weight | 1KG | |
| RoHS Compliant | YES |
This antenna is a great solution to be well prepared for future technology worldwide such as NR (New Radio) and offers a reliable signal quality while taking advantage of the MIMO option.
The low-profile compact design and high-quality adhesive mount make this antenna an ideal solution for outdoor applications with quick and easy installation on a wide range of surfaces.
Installing four antennas in one cover can greatly save installation space and reduce the number of antennas.
