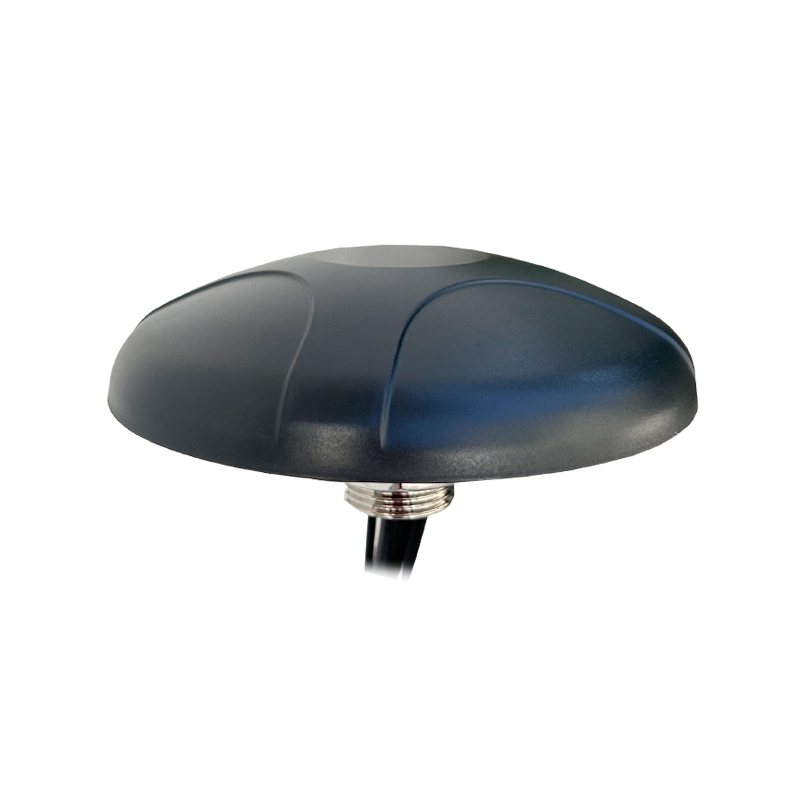

This antenna is a heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.
It is unique in the market because it with high efficiency in a compact format. This antenna screws down in permanently onto a roof or metal panel and can be pole or wall-mounted with a metal bracket.
For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, it provides a robust, rugged antenna that is durable, even in extreme environments.
| Electrical | ||
| LTE Part: | Frequency range | 698-960/1710-2700MHz*2 |
| VSWR | 2.0:1 | |
| Gain | 3dBi*2 | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| Impedance | 50Ω | |
| Radiation | Omni | |
| Maximum Input Power | 50W | |
| WIFI Part: | Frequency range | 5150-5850MHz*2 |
| V.S.W.R | 2.5 | |
| Gain | 3dBi*2 | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | 4xRG58U | |
| Length | 4x3/5M or can be customization | |
| Connector | 4xSMA Male or can be customization | |
| Environmental | ||
| Working Temp | -40℃~+80'℃ | |
| Humidity | 95%~100%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw Mount | |
| Antenna Dimension | Ф143.6x65mm | |
| Weight | 1KG | |
| RoHS Compliant | YES |

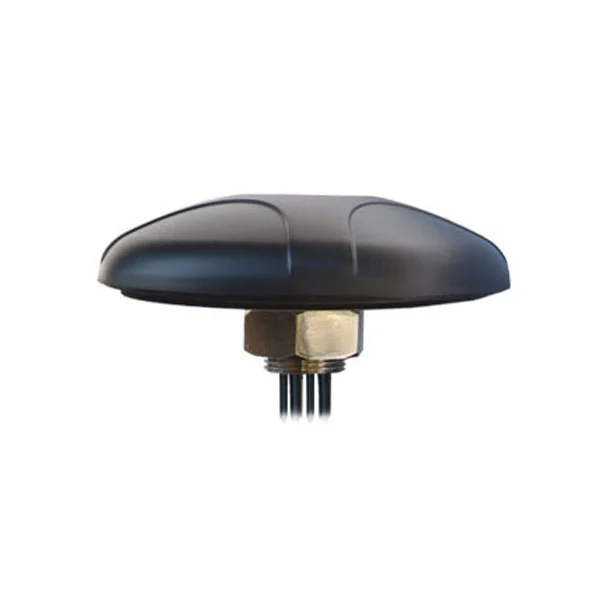

A stainless steel base of the antenna for maximum durability.
Ground plane independence and screw mount technology of the antenna allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable.
The antenna comes with standard SMA-Male connector and 300cm long RG58U Standard cable, a popular choice for in high-frequency applications up to 6 GHz.
