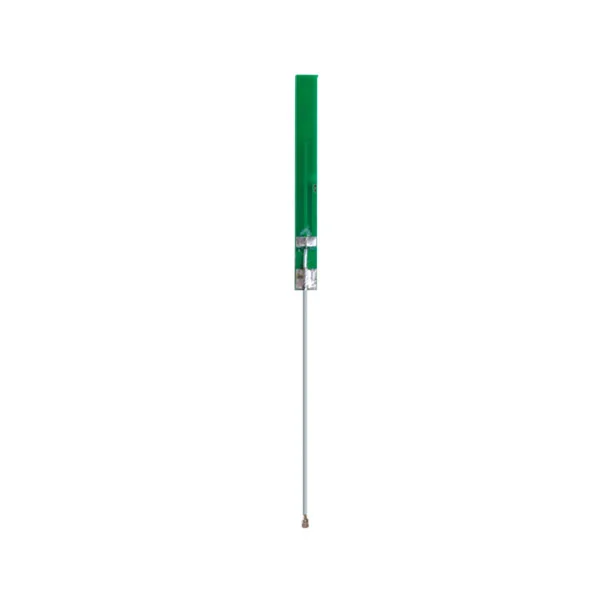

Embedded 3G Systems, For World-wide Use,Vertical Polarization. Electrical connection with the PCB is accomplished by soldering the silver pin through the hole on the PCB.
Antenna can be placed on the inside of a non-metallic housing, allowing it to be hidden almost anywhere while providing an invisible solution for many applications.
The combination of multiple frequency bands and an omnidirectional pattern offers a variety of uses suited for indoor applications.
The antenna is specifically designed for internal applications covering the 850/900/1800/1900 and UMTS bands.
Cable lengths and connectors are fully customizable.
For good efficiency performance the shortest cable length should however not be less than 100mm.
| Electrical | |
| Frequency Range | 1710-2170MHz |
| Gain | 2.15dBi |
| V.S.W.R | ≤1.8 |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | 1.13 |
| Cable Length | 10cm |
| Antenna Material | FR4 |
| Mechanical | |
| Dimensions | 47x5x1mm |
| Weight | 5g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
The antenna providing better signal strength with very small foam factor, it is best suited for GSM applications.
This antenna providing better signal strength and it is best suited for GSM applications.
Compact PCB Antenna has the high performance and it's required from a small size for GSM Cellular applications.
