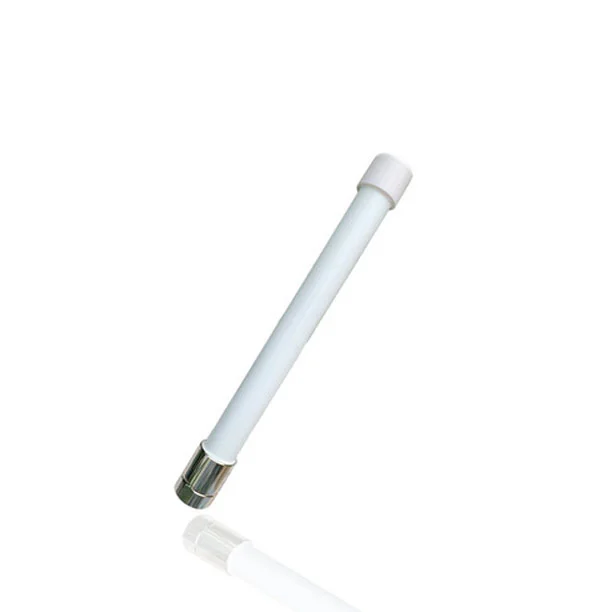

This is an omni-directional fiberglass base station antenna. It has a collinear design enclosed in high density fiberglass, which is covered with a protective ultraviolet inhibiting coating.
This antenna is ideal for downtown urban settings, RV's or marine installations.
It's built with a strong fiberglass casing and is designed to cover 806-2170MHz Wideband.
The Fiberglass antenna is an omni-directional antenna that gathers signals from all sides and does not need to be pointed toward a cellular tower. Parts includes mounting equipment for either a flat horizontal surface or a wall. Be mounted in an upright position for best results.
| Electrical | |
| Frequency Range | 806-960/1710-2170MHz |
| Gain | 3/4dBi |
| Horizontal Beam width | 360° |
| Vertical Beam width | 35° |
| V.S.W.R | ≤1.8 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Male |
| Antenna Radome Material | Fiberglass |
| Mechanical | |
| Dimensions | Φ20x217mm |
| Weight | 100g |
| Operating Temperature | -40℃ to+80℃ |
| Rated wind velocity(m/s) | 60m/s |
| RoHS Compliant | YES |
3G Omni Outdoor Antenna for Building or House Wide-Band 2G 3G is a very popular Omni-Directional antenna.
Weather-proof design and covers a wideband frequency range of 2G, 3G from 800-2170MHz.
It features vertical polarization and a maximum of 3 dBi gain.
