English

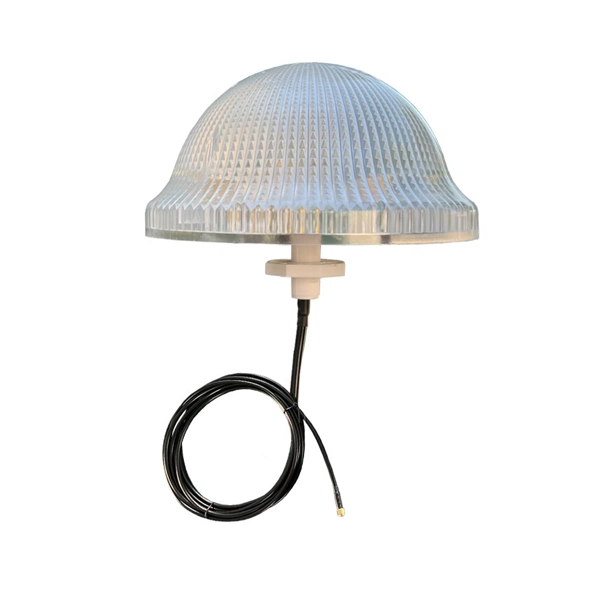

This 800-2500 MHz indoor cellular omnidirectional dome antenna series are constructed of transparent ABS plastic. The low profile attractive styling blends well in almost any office or home environment. Mounting is simplified with a single hole mount design to easily mount to drop ceilings or fixed ceilings. The antenna comes with a bulkhead N Female connector standard which is long enough to mount thru thick ceiling.
| Electrical | |
| Frequency Range | 824-960/1710-2500MHz |
| Gain | 3/5dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 55°/35° |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | ABS |
| Mounting way | Ceiling Mount |
| Mechanical | |
| Dimensions | Φ190x85mm |
| Weight | 300g |
| Operating Temperature | -40℃ to+80℃ |
| RoHS Compliant | YES |
This indoor ceiling aerial is suitable for almost all of the repeater kits.
The Omni ceiling aerial looks like a smoke detector and can combine with any of our repeater kits.
Multiband Omni antenna can work with the signal splitter to provide coverage to more than one area with a single base unit repeater.
