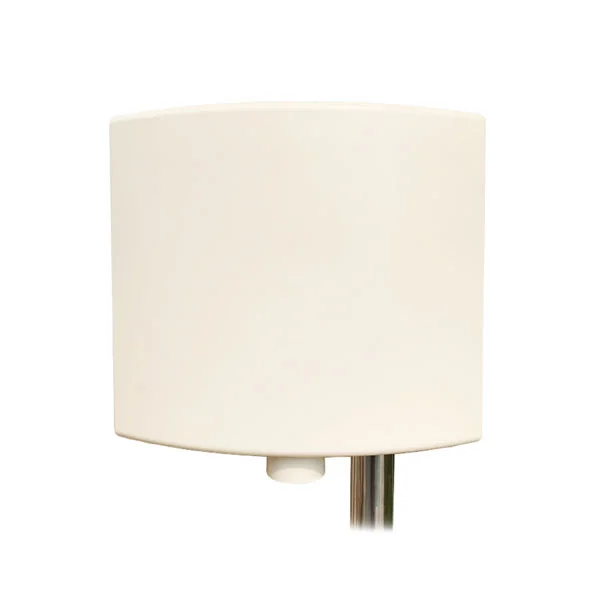

This type wall mount directional antenna is Compact and light weight with Vertical Polarization that in 824-960/1710-2500MHz frequency.
Use them with the communication equipment and an antenna tracker to increase range and Received Signal. Strength Indication. Also works great for telemetry receivers.
The antenna is ideal for both indoor and outdoor applications.
Being Bracket mount it is designed to be mounted on a ground plane for optimal performance.
Cable and Connector can be Customed.
| Electrical | |
| Frequency Range | 824-960/1710-2500MHz |
| F/B Ratio | ＞25dB |
| Gain | 10dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 30° |
| Vertical Beam width | 28° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | ABS |
| Mounting way | Wall Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 250x220x65mm |
| Weight | 1.6KG |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
This antenna is supplied with the flame retardant and UV-resistant sheath terminated in N-Female connector directly.
The jumper cable requires a N-Male Plug to connect to the antenna.
We also offer a wide range of customized alternative connectors and cables upon request.
