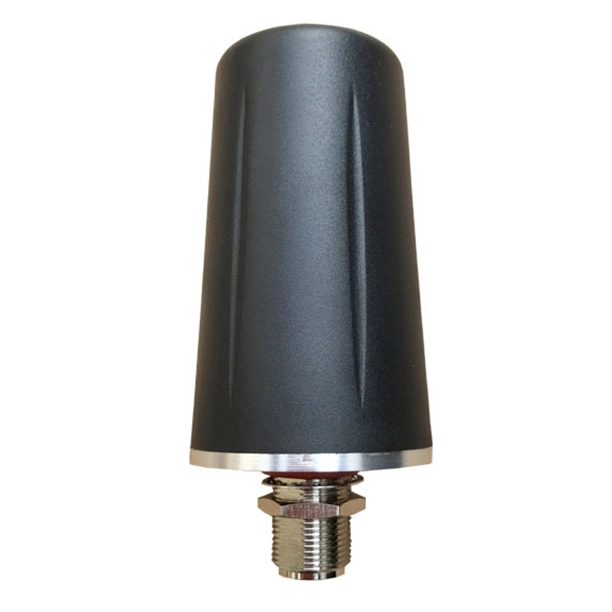

The 5G M2M Antenna is vertically polarized with an omnidirectional radiation pattern.
These antennas are intended for demonstration use or short-range communications only.
It does not require a ground plane to connect to.
It has quality ABS housing for use with 5G/LTE terminals.
The linear polarized antenna can be made very small and lightweight, especially useful for weight-critical applications.
The antenna has a wide-band response and can also be used for other cellular and wireless applications.
Electrical
| Frequency Range | 3500-3800MHz |
| Gain | 5dBi |
| V.S.W.R | ≤2.0:1 |
| Radiation | Omni-direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | ABS |
| Mount way | Screw |
Mechanical
| Dimensions | Φ48×85mm |
| Weight | 160g |
| Waterproof | IP66 |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
The antenna with the Low VSWR,Compact size,Good appearance,Easy to mount Stable performance.
This 3.5 GHz 5 dBi gain omni-directional rubber-duck antenna provides broad coverage.
This is an omni-directional pattern with coaxial sleeve design.
