28dBi directional MIMO operation, ideal for extraordinary long distance point to point connection Weather proof design, suitable for all weather conditions.
N Female connector, applicable in most outdoor solutions Outdoor Dish Parabolic Antenna, is applicable for outdoor point-to- point or point to multipoint directional signal transmission.
It is usually mounted on such high-level outdoor locations as towers, roofs, etc.3.5G MIMO Dish antenna, which focuses the signal and reflects the power off of the dish, creating very high power in a highly directional beamwidth. You can think of the radio signal beam of a high gain parabolic dish/ grid antenna as shining a high power flashlight directly at your target.

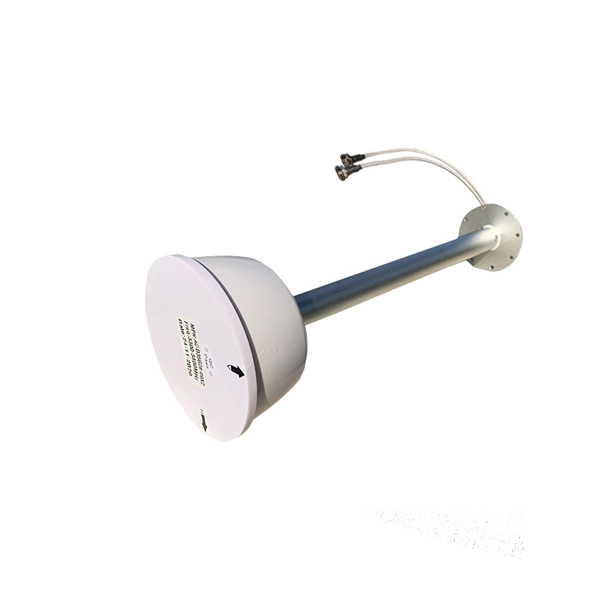

We offers feedhorns for your parabolic Dish. These kits consists of the feedhorn and mounting hardware. This is the feedhorn for our AC-D35G28-09X2 antenna.
| Electrical | |
| Frequency Range | 3300-3800MHz |
| F/B Ratio | ＞35dB |
| Gain | 2x28dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 14° |
| Vertical Beam width | 10° |
| Polarization | Vertical and Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 200W |
| Impedance | 50Ώ |
| Connector | 2xN Female |
| Cable Type | RG142 |
| Cable Length | 30cm |
| Mechanical | |
| Antenna Dimension | Φ13x395mm |
| Weight | 430g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
The reflector is usually made from aluminum alloy with lightweight for low cost and easy installation.
The replacement feedhorn is use for the antenan with 28dBi rating with a very narrow pinpoint signal beam just under 14 degrees wide.
It features a focal length of 156" and an N connector with an outside thread.
