This antennah series light aluminium alloy duty Yagi are factory assembled and adjusted for easy installation. They feature light-wall tubing elements and machined aluminum blocks for the boom-to-element junctions. Economical, lightweight installation and good performance.
| Electrical | |
| Frequency Range | 3400-3600MHz |
| F/B Ratio | ＞18dB |
| Gain | 14dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 25° |
| Vertical Beam width | 25° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | Aluminum |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | 30-50mm |
| Mechanical | |
| Dimensions | 440x80x35mm |
| Weight | 400g |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
This is a versatile high performance directed 3.5ghz antenna.Made of aluminium alloy, durable and light. Comes with cable,convenient to use.

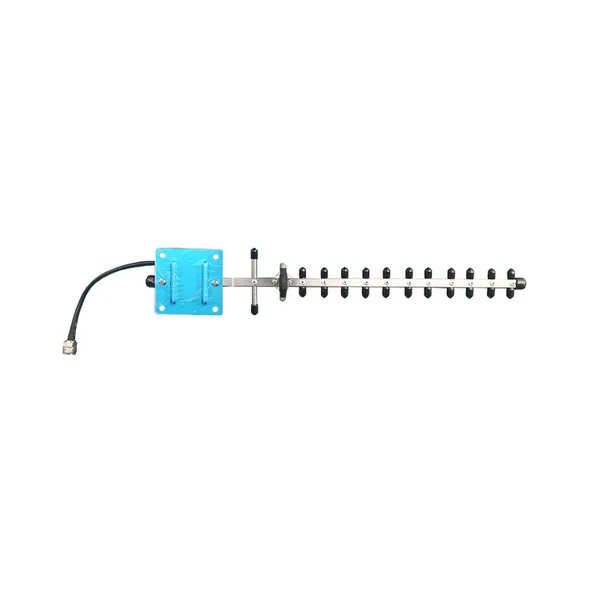

Easy installation, looks good This 3.5 GHz high gain directional WiMax Yagi antenna provides 14 dBi gain for directional applications.
It is suited for 3.5 GHz band applications. This Yagi antennas provides the user with anodized aluminum boom, solid elements, low loss and Broadband operation. Can be oriented for either vertical or horizontal polarization.
