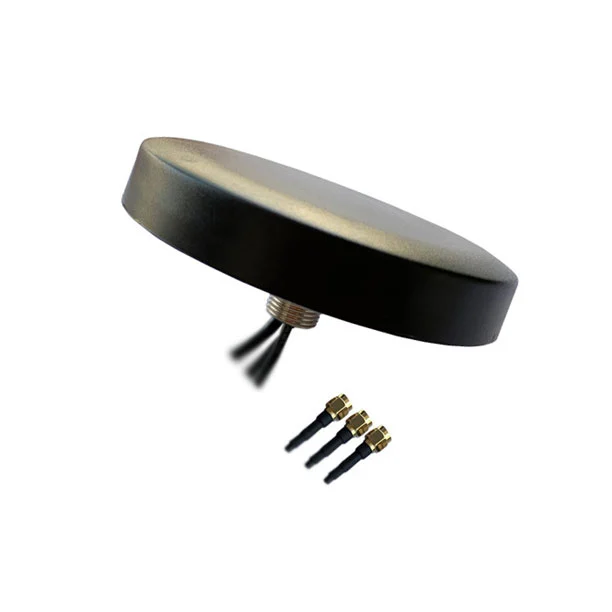

The 3in1 GPS(GNSS)/3G/LTE antenna is a low profile, heavyduty, waterproof reach IP66.
It use by RF professionals in telematics, transportation and remote monitoring applications.
It combines the highest possible efficiency and peak gain in GPS/GLONASS/2G/3G/4G in a low profile compact format for mounting via high quality first tier
For installation combines 3M adhesive foam, screw mount together.
| Electrical | ||
| GPS Part: | Dielectric Antenna | |
| Frequency Range | 1575.42MHz±3 MHz/1602-1610MHz | |
| Polarization Type | RHCP | |
| Gain | 2dBi | |
| V.S.W.R | <2.0 | |
| Impedance | 50Ώ | |
| LNA | ||
| LNA Gain | 28±2dB Typical | |
| Noise Figure | 1.5dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| V.S.W.R | ＜2.0 | |
| Voltage | 2.7/3.0/3.3/5.0/3.0 to 5.0 etc. | |
| Current Consumption(mA) | 11 Max | |
| Impedance | 50Ώ | |
| DC current | 5-15mA | |
| GSM/3G Part: | Frequency range | 824-960/1710-2170MHz |
| V.S.W.R | 2.0:1 | |
| Gain | 3dB | |
| Polarization | Linear | |
| Impedance | 50Ω | |
| LTE Part: | Frequency range | 698-960MHz/1710-2700MHz |
| V.S.W.R | 2.0:1 | |
| Gain | 2dBi | |
| Polarization | Linear | |
| Impedance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | RG174 | |
| Length | 3M | |
| Connector | 3xSMA Male | |
| Environmental | ||
| Working Temp | -40℃~+85℃ | |
| Humidity | 55%-75%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw Mount | |
| Antenna Dimension | Ф80×15 mm | |
| Weight | 150g | |
| RoHS Compliant | YES | |
This antenna offers a ultra-low profile design with easy mounting and customizable cables and connector options.
High-Performance, Connectivity, Precision, Reliability, and Usage Flexibility All In One Compact Antenna .
The antenna is designed with rugged ABS black housing and is ideal for the most demanding environmental challenge.
