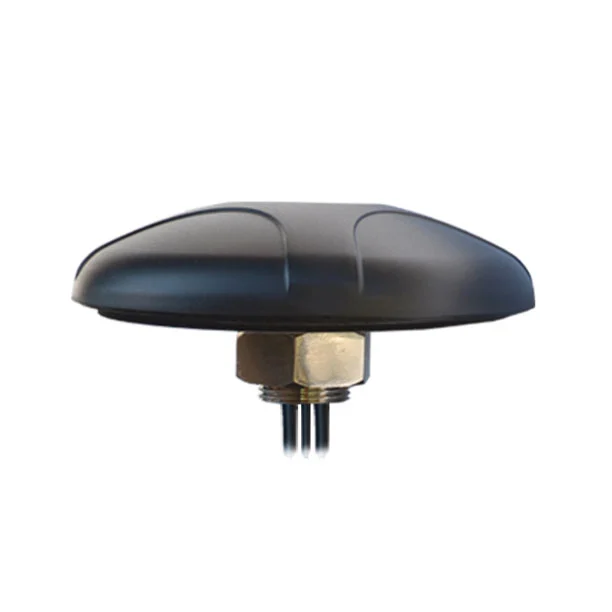

This antenna is a heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.
It is unique in the market because it with high efficiency in a compact format. This antenna screws down in permanently onto a roof or metal panel and can be pole or wall-mounted with a metal bracket.
For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, it provides a robust, rugged antenna that is durable, even in extreme environments.
| Electrical | ||
| GPS Part: | Dielectric Antenna | |
| Frequency Range | 1575.42MHz±3 MHz/1602-1610MHz | |
| Polarization Type | RHCP | |
| Gain | 5dBi | |
| V.S.W.R | <2.0 | |
| Impedance | 50Ώ | |
| LNA | ||
| LNA Gain | 28±2dB Typical | |
| Noise Figure | 1.5dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| V.S.W.R | ＜2.0 | |
| Voltage | 2.7/3.0/3.3/5.0/3.0 to 5.0 etc. | |
| Current Consumption(mA) | 11 Max | |
| Impedance | 50Ώ | |
| DC current | 5-15mA | |
| LTE Part: | Frequency range | 698-960/1710-3800MHz |
| V.S.W.R | <2.0 | |
| Gain | 3dBi | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| WIFI Part: | Frequency range | 2.4/5GHZ |
| V.S.W.R | <2.5 | |
| Gain | 3dBi | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | 3xRG174 | |
| Length | 3x3/5M or can be customization | |
| Connector | 3xSMA Male or can be customization | |
| Environmental | ||
| Working Temp | -40℃~+80'℃ | |
| Humidity | 95%~100%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw Mount | |
| Antenna Dimension | Ф143.6x65mm | |
| Weight | 1KG | |
| RoHS Compliant | YES | |
The housing is an extremely robust IP67 direct mount antenna package with excellent isolation.
The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance.
For cable length requests above 5 metres contact Asian Creation for advice about suitability for application.
