The 2 in 1 LTE antenna is a low profile, lightweight, waterproof reach IP66.
It use by RF professionals in telematics, transportation and remote monitoring applications.
It combines the highest possible efficiency and peak gain in GPS/2G/3G/4G in a low profile compact format for mounting via high quality first tier.

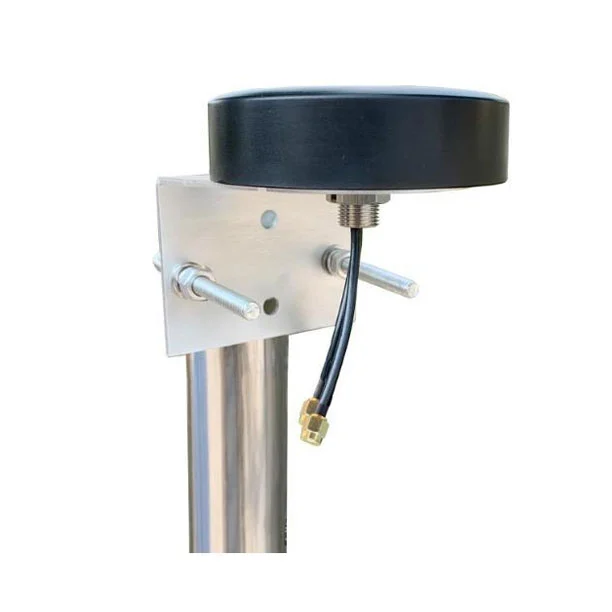

The installation method is a combination of pole mount, bracket mount and screw installation.
You can choose the appropriate installation method according to the actual use environment.
| Electrical | |
| Frequency Range | 2x 698-960/1710-2700MHz |
| Gain | 2x3dBi |
| V.S.W.R | ≤2.0, Max:3.0 |
| Radiation | Omni-Direction |
| Polarization | Linear |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | 2xSMA Male |
| Cable Type | 2xRG174 |
| Cable Length | 3m standard, fully customizable |
| Antenna Radome Material | ABS |
| Mounting way | Pole Mount |
| Mechanical | |
| Dimensions | Ф80x20mm |
| Weight | 196g |
| Working Temp | -40℃~+85℃ |
| Humidity | 55%-75%RH |
| Antenna Radome Material | ABS |
| Waterproof | IP66 |
| RoHS Compliant | YES |
High performance, dual cable dual connector design, MIMO LTE combined type, can navigate and receive mobile signal.
This LTE combo antenna is suitable for all 3G and 4G cellular bands worldwide (all CDMA, WCDMA / UMTS and LTE operators).
Dimensions isФ80x20mm, Includes a 3m of low-loss coaxial cable that is input through a central mounting post.
