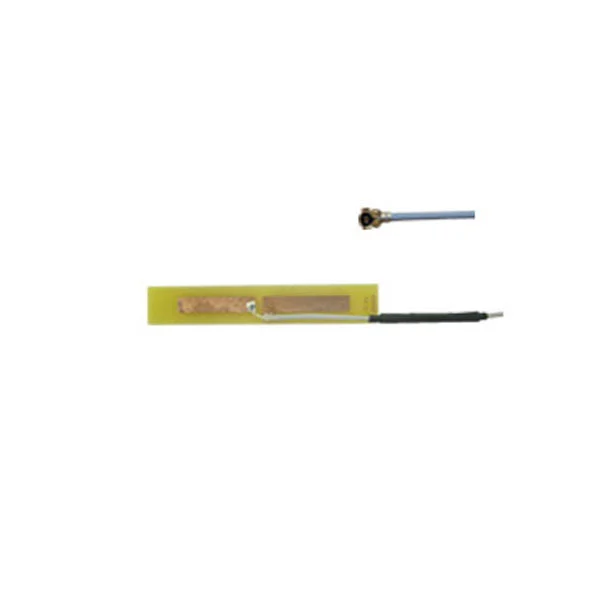

This is a low-profile and small ultra-low profile FPC antenna for 2.4GHz band that includes Bluetooth, Zigbee, and Wi-Fi single band application.
It is made from a flexible polymer, has a tiny form factor (22mm*18mm*0.1mm) and has double-sided 3M tape for easy and robust 'peel and stick' mounting
At just 22x18mm, it provides a high-performing antenna solution using minimum boardspace.
It is a perfect choice for compact fixed wireless applications operating on the wireless applications.
It also is the ideal all-round antenna solution for fitting into narrow spaces and still maintaining high performance, for example on the inside top or adjacent side applied directly to the plastic housing of LCD monitors, tablets, smartphones, small AP routers, etc.
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Gain | 1.5dBi |
| V.S.W.R | ≤2.0 |
| Polarization | Linear |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Cable Type | 1.13 Cable |
| Cable Length | 10cm |
| Connector | IPEX |
| Antenna Radome Material | FPC |
| Mount way | Adhesive |
| Mechanical | |
| Dimensions | 22x18x0.1mm |
| Weight | ≤5g |
| Operating Temperature | -40℃ to+85℃ |
| RoHS Compliant | YES |
This Flexible FPC antennas are flexible, flat antennas that can be easily glued to the inside of a plastic enclosure.
This antenan compatible WiFi/Bluetooth Module with IPEX connector.
The PCB antenna can be use for a device housing for aesthetically pleasing integration and with reliable performance.
