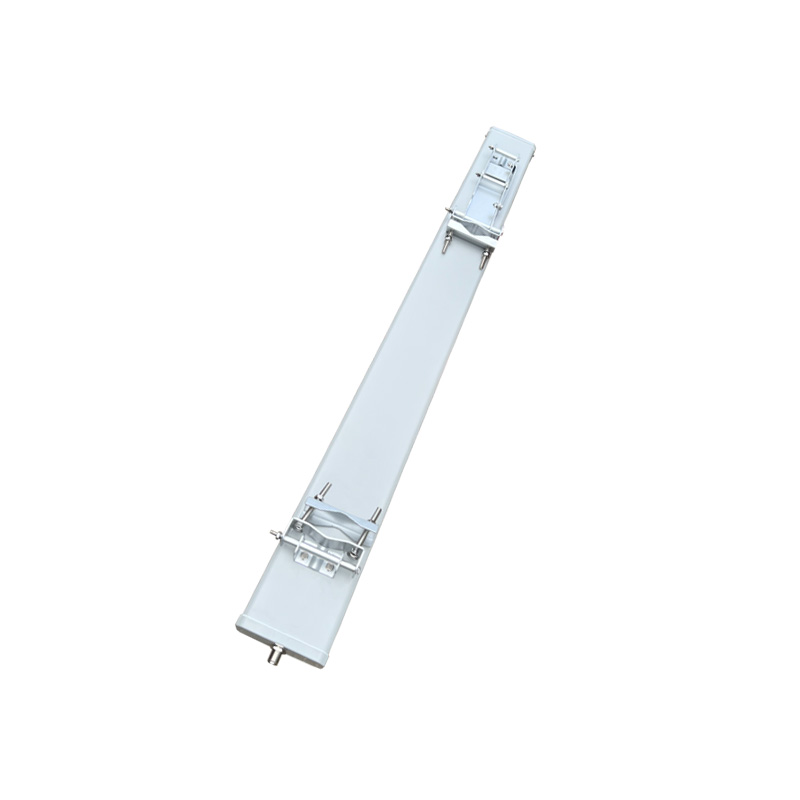

This type 2.4GHz antenna Wide H-plane sectored antenna offers the systems integrator a solution for sectorized base stations.
Enclosed in an attractive, PVC weatherproof radome, the antenna satisfies indoors aesthetic requirements.
It is rugged enough to withstand outdoor exposures too
(1)high gain and good sector pattern, petals small, vertical direction Angle is easy to control
(2)H or V Polarization Full day for working Durable, corrosion resistance Optimized dimension
| Electrical | |
| Frequency Range | 2300-2700MHz |
| Band width | 400MHz |
| F/B Ratio | ≥25dB |
| Gain | 16dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 120° |
| Vertical Beam width | 9° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 200W |
| Impedance | 50Ώ |

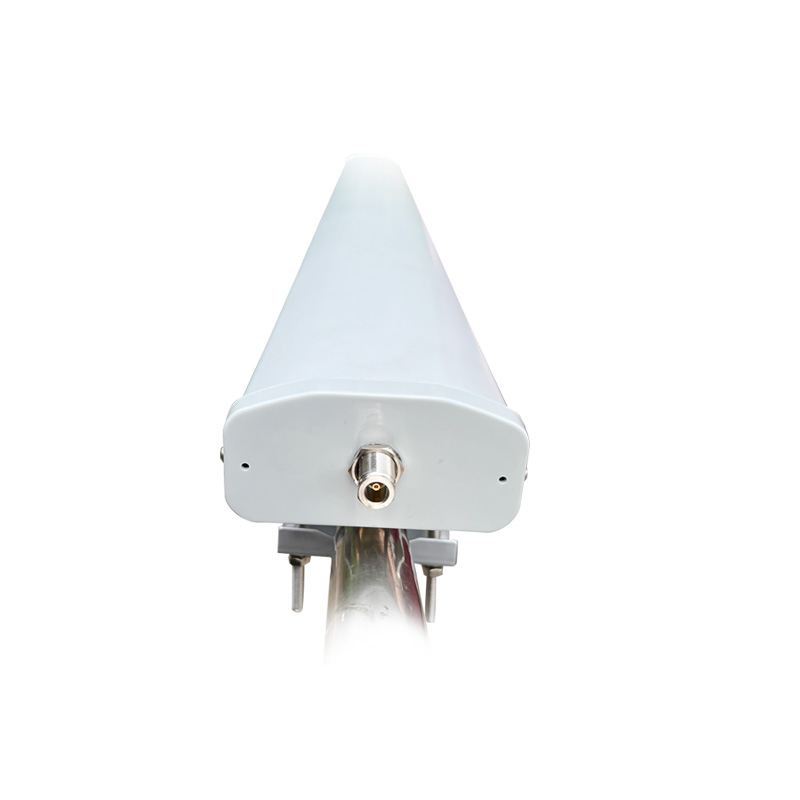

| Connector | N Female |
| Antenna Radome Material | PVC |

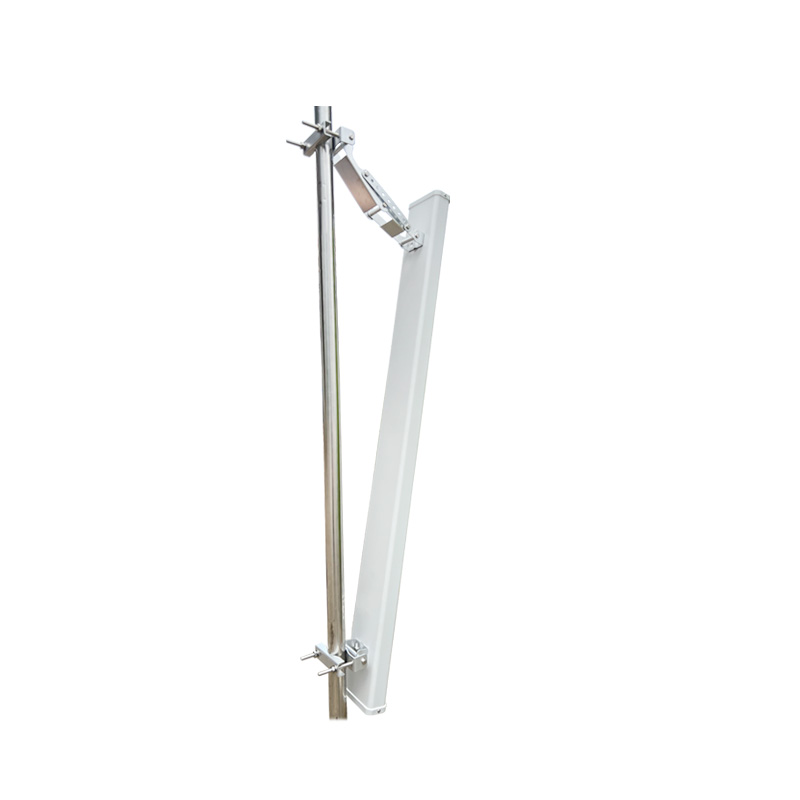

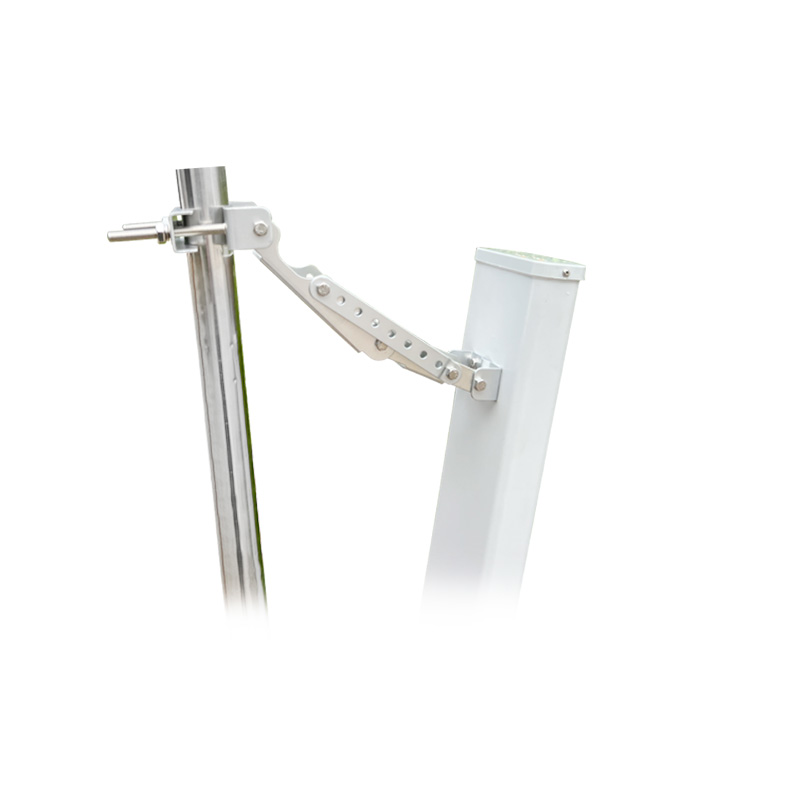

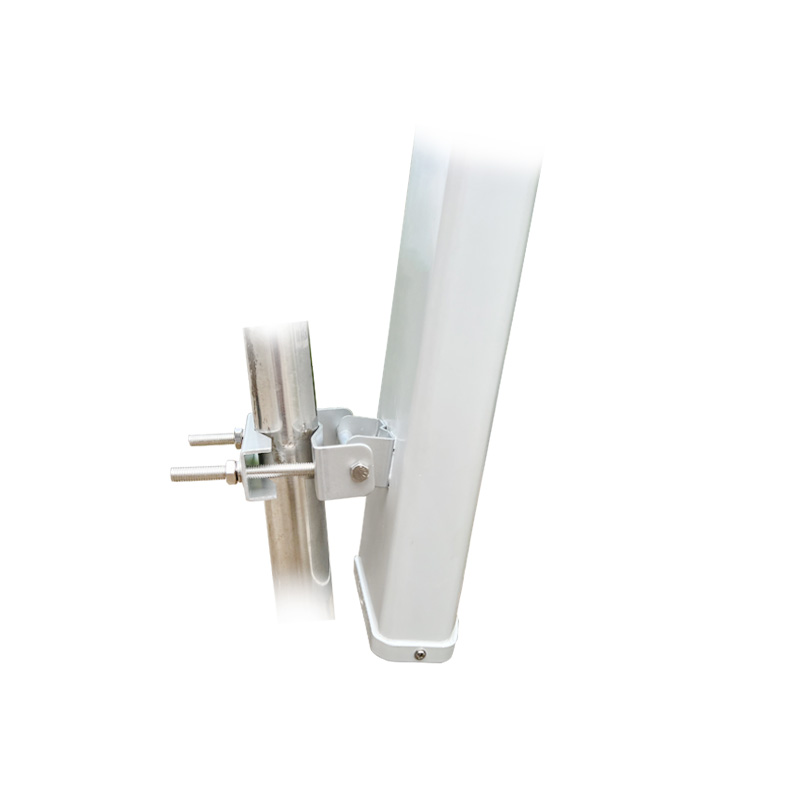

| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Antenna Dimension | 1200x120x60mm |
| Weight | 5.5KG |
| Operating Temperature | -40℃ to+60℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
Click to see lte sector antenna list.
This Sector Antenna work for Cell Phone Tower 2300-2700 MHz 4G LTE
Provides sectorized coverage for C-band spectrum,Education Broadband Service (EBS) spectrums Service.
The sector antenna are commonly available with 60°, 90°, and 120° beamwidths etc to choose.
