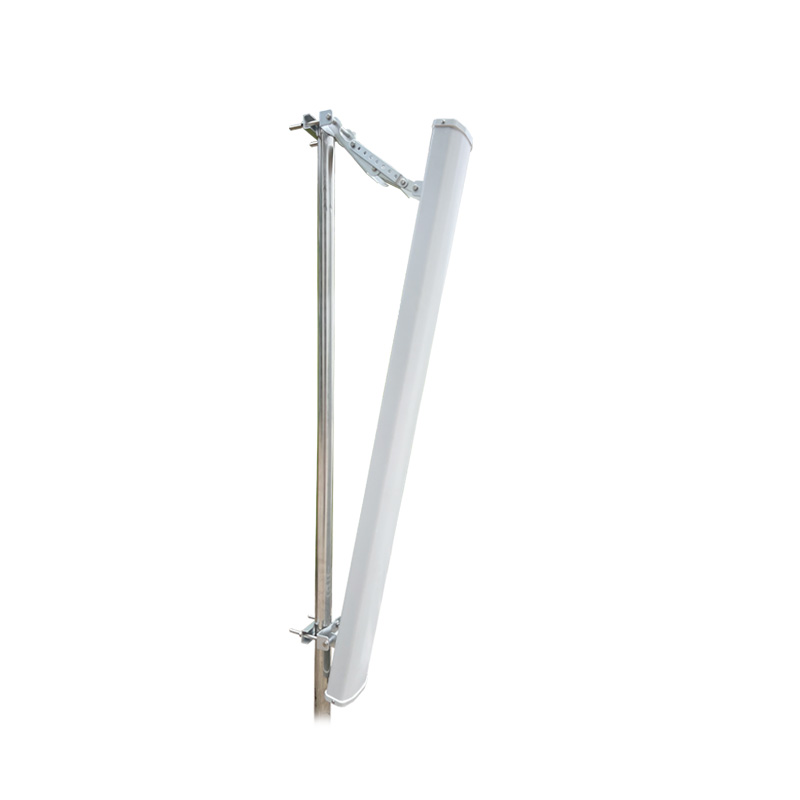

This type 2.4GHz antenna Wide H-plane sectored antenna offers the systems integrator a solution for sectorized base stations.
Enclosed in an attractive, PVC weatherproof radome, the antenna satisfies indoors aesthetic requirements.
It is rugged enough to withstand outdoor exposures too
(1)high gain and good sector pattern, petals small, vertical direction Angle is easy to control
(2)H or V Polarization Full day for working Durable, corrosion resistance Optimized dimension
| Electrical | |
| Frequency Range | 2300-2700MHz |
| Band width | 400MHz |
| F/B Ratio | ≥25dB |
| Gain | 16dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 120° |
| Vertical Beam width | 9° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 200W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | PVC |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Antenna Dimension | 1200x120x60mm |
| Weight | 5.5KG |
| Operating Temperature | -40℃ to+60℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
Three of 120°these antennas mounted to a tower provides complete 360° coverage.
This sector antenna can be use for MANET Radio Systems 2X2 MIMO application.
The RF connectors at the bottom of the antenna have one two or four connectors to choose.
Asian Creation pays attention to the quality and service. We Keeping progressing, Pursuing integrity, Embracing future. Our teams arelways enthusiastic and welcome to visit us and join hands for a prosperous future.
