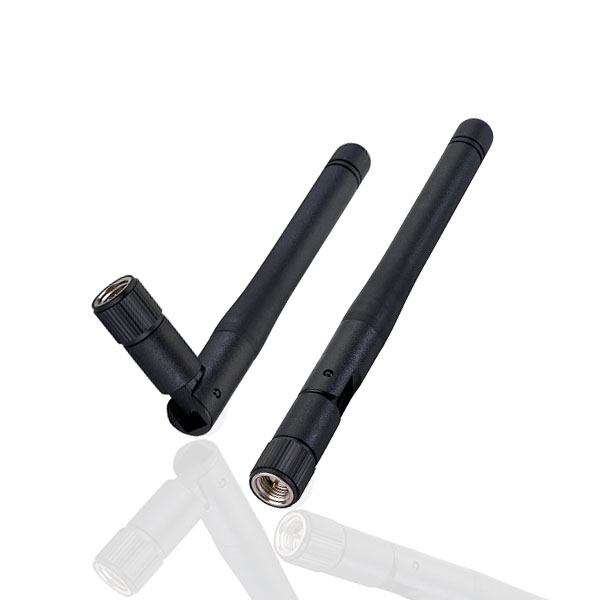

GSM terminal Antenna is primarily designed for use with CDMA/GSM modules . It does not require a ground plane to connect to. It has a quality robust housing for use with wireless terminals.
The antenna has a N Male or female connector.
The antenna has a wide-band response and can also be used for other cellular and wireless applications such as GSM, LTE,UMTS.
| Electrical | |
| Frequency Range | GSM850:824-896MHz GSM900:890-960MHz |
| DCS:1710-1880MHz PCS:1850-1990MHz | |
| Gain | 5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | N male |
| Antenna Radome Material | TPE |
| Mechanical | |
| Dimensions | Φ22x180mm |
| Weight | 70g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
This 900 MHz ISM antenna, as well as our wide selection of superior quality RF parts.
The hinged Ultra-Wideband Dipole Antenna has been designed to cover all Cellular, ISM and Wi-Fi working frequencies in the 800-1900 MHz.
Our portfolio of cellular antennas includes solutions for emerging technologies such as 5G, as well as coverage of older networks such as 2G, 3G, 4G, and CBRS.
