Aluminium Enclosure IP66，Router could be put in Enclosure.

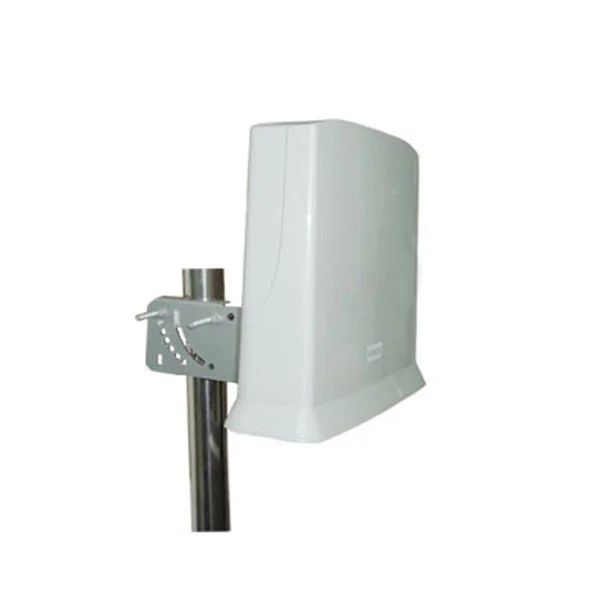

This is a 16dBi high gain flat panel style outdoor antenna for 2.5-2.7GHz WiFi band.
It features vertical polarized spatial diversity.
This product includes a weatherproof outdoor enclosure with panel antenna and enough interior space for customer to installation Router Board or other electronic equipment.
| Electrical | |
| Frequency Range | 2500-2700MHz |
| Band width | 200MHz |
| F/B Ratio | ＞25dB |
| Gain | 16dBi |
| V.S.W.R | ≤1.7 |
| Radiation | Direction |
| Horizontal Beam width | 27° |
| Vertical Beam width | 23° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Cable | RG316 |
| Connector | SMA male(Or SMA PCB connector without cable) |
| Antenna Radome Material | ABS |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Antenna Dimension | 280x265x95mm |
| Radio Area Dimensions | 255x231x74mm |
| Weight | 1.5KG |
| Operating Temperature | -40℃ to+65℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
This is a 16dBi high gain CPE style outdoor antenna for 2.5-2.7GHz WiFi band.
It features vertical polarized spatial diversity and IP66 waterproof.
This product have enough interior space for customer to installation Router Board or other electronic equipment.
