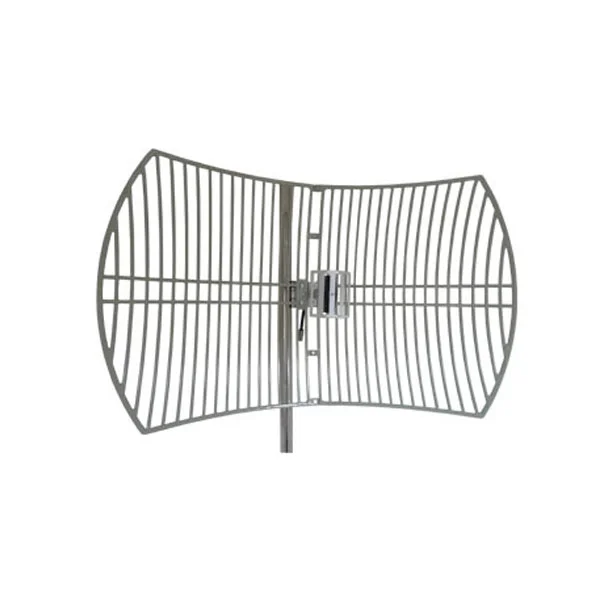

Grid parabolic antenna is designed for the spread spectrum system,operates in the 2.4-2.5 GHz band and provides 24dBi directional Parabolic Grid antennas operation. This antenna features high gain, long coverage, lightweight, compact structure and excellent wind-resistance.It is used for outdoor and the range is up to 5-20 km 2.4 GHz antenna, which focuses the signal and reflects the power off of the dish, creating very high power in a highly directional beamwidth. You can think of the radio signal beam of a high gain parabolic dish/ grid antenna as shining a high power flashlight directly at your target. The higher the parabolic grid’s gain, the narrower the beam. The 24dB Grid antenna, is a simple, tested and excellent light weight design, now made out of aluminum and powder coated for years of use. 2-piece dish assembles in minutes, includes all hardware and pieces for assembly.
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| F/B Ratio | ≥25dB |
| Gain | 24dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 10° |
| Vertical Beam width | 14° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | LMR240 |
| Cable Length | 30cm |
| Antenna Radome Material | Aluminium alloy |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø50~Ø70mm |
| Mechanical | |
| Antenna Dimension | 600x900mm |
| Weight | 2.3KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
2.4 GHz wireless LAN systems, 2.4 GHz UNI/ISM applications, IEEE 802.11b/g/n Wireless LAN applications.
With its high gain of true 24dBi and the strong signal concentration allows to build up point-to-point links on very high distances.
Grid parabolic dish antenna covering 2400-2500 MHz frequency range with excellent front-to- Back ratio and suited for directional point to point systems.
