2.4GHz omni directional wifi wireless antennas for both consumer and commercial grade WiFi networks.
Omni WiFi antennas, broadcast / propagate a full 360 degree radiation pattern, completely surrounding and saturating the radio signal in all directions outwards from the center of the antenna.
Omni WiFi antennas are generally used in public WiFi applications, farms and ranches, public parks, zoos and recreation centers, along with most RV Parks and Marinas.
An omni directional WiFi antenna, generally connects to an access point or router, via coaxial cable, or direct to the outdoor access point.
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| Gain | 3dBi |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 25° |
| V.S.W.R | ≤1.5 |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Φ30-50mm |
| Mechanical | |
| Antenna Dimension | Φ20x200mm |
| Weight | 150g |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |

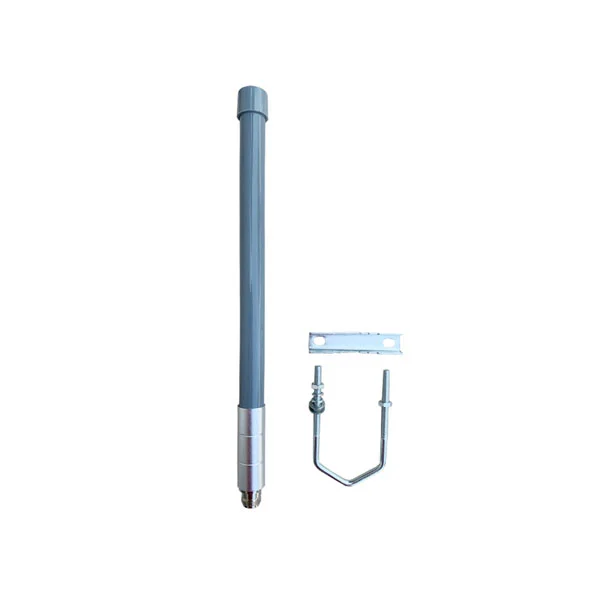

This antenna's construction features a durable fiberglass radome for durability and aesthetics.
It is ideally suited for multipoint and mobile applications where high gain and wide coverage is desired.
Used in indoor & outdoor distribution of WLAN services, Low return loss, High gain, Good radiation pattern, waterproof.
