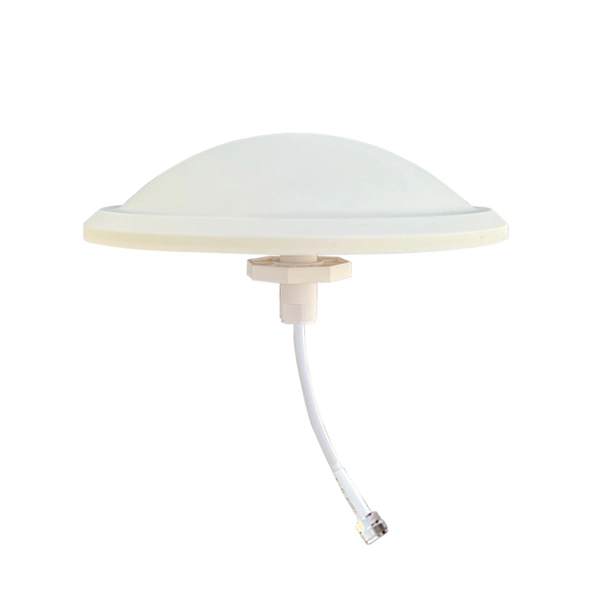

This is a low PIM high performance omni-directional ceiling mount antenna specifically designed for in-building wireless networks such as DAS (Distributed Antenna Systems) which are used to distribute Cellular and WiFi signals throughout a building or area.
It's ideal for LPWAN/IoT/M2M applications such as LoRA, LTE-M, and NB-IoT. The Ultra-Wide Band design of this antenna eliminates the need to purchase different antennas for each frequency.
This simplifies installations since the same antenna can be used for a wide array of in-building wireless applications where wide coverage is desired.
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| Gain | 3dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | ABS |
| Mounting way | Ceiling Mount |
| Mechanical | |
| Antenna Dimension | Φ160x85mm |
| Weight | 250g |
| Operating Temperature | -40℃ to+80℃ |
| RoHS Compliant | YES |
The antenna has Broad Band, low VSWR Small size.
This is the Spatial Diversity antenan for better wireless reception.
The antenna has Compact/Aesthetic ceiling mount design.
