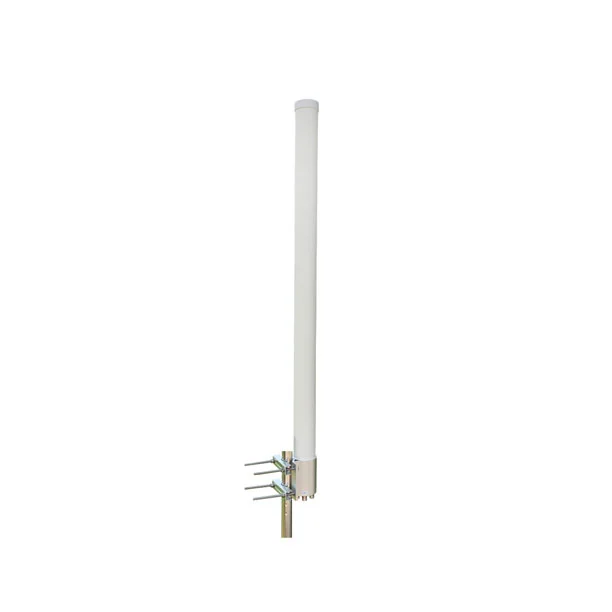

This omnidirectional WiFi MIMO antenna is designed for the 2.4 GHz frequency band. The enclosure of the antenna is made of PVC.
The robust, light weight construction is weatherproof which makes the antenna usable for in- and outdoor appliances.
The omnidirectional antenna is intended for mounting on a mast or a wall bracket.
A corresponding mounting bracket and a pipe clamp are included in the scope of delivery.
| Electrical | |
| Frequency Range | 2400-2500MHz X4 |
| Gain | 12dBi |
| Polarization | Vertical & Horizontal |
| V.S.W.R | ≤1.8 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 21° |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 4xN Female |
| Antenna Radome Material | PVC |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Φ75x1300mm |
| Weight | 2.5KG |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
This outdoor omnidirectional antenna is a high performance RF component which operates from 2400 to 2500 MHz.
The Type N connectorized antenna with vertical/horizontal polarization provides excellent outdoor coverage for all base station applications.
4X4 MIMO high performance omni-directional antenna and consistent 12dBi high gain over a wide frequency band.
