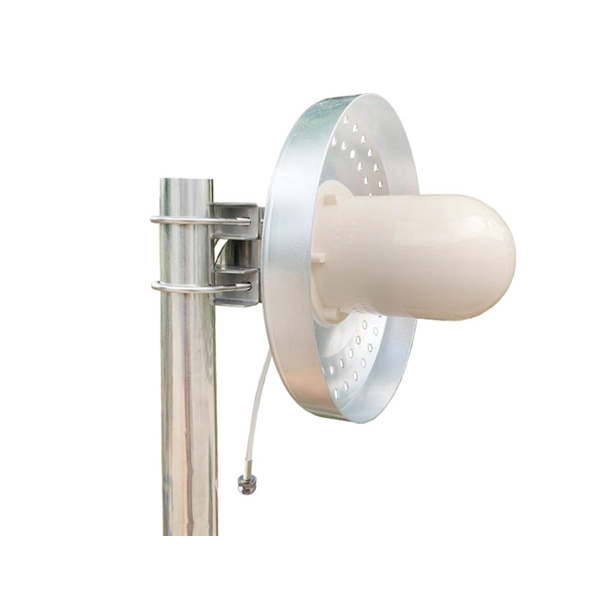

The backfire antenna has very high gain for such a small antenna. Performance on 2.4 GHz is excellent!
The 2.4 backfire is the antenna we recommend for extended wireless coverage or building to building links.
It is a very small antenna with extremely good gain. With a half power beamwidth of 35 degrees, the backfire is a highly directional 2.4 GHz antenna to put the signal exactly where you want it.
The backfire is convenient because of its small size. The 16 dBi of gain is incredible for an antenna this size. Installation is very simple with the included mounting bracket.
The backfire is weather-proof because of it's ABS radome, which covers the radiating element.
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| Gain | 16dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Directional |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable type | RG142 |
| Cable length | 30cm |
| Antenna Radome Material | Aluminum |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Antenna Dimension | Φ260mm |
| Weight | 900g |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
The Backfire antenna is allow you to send the WiFi signal from one location to the other, with high gain, minimizing interference from other sources.
This Backfire 2.4 GHz directional antenna, has true vertical and horizontal separation.
With this reliable high performance antenna in high traffic areas, you can lay the antenna over on it's horizontal polarization side, and decrease all surrounding traffic.
