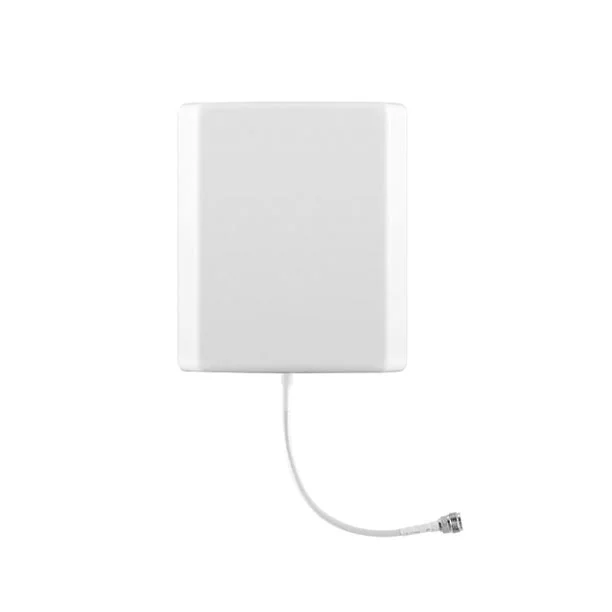

This type wall mount omni-directional antenna is Compact and light weight with Vertical Polarization that in 2400-2483MHz frequency.
Use them with the communication equipment and an antenna tracker to increase range and Received Signal Strength Indication. Also works great for telemetry receivers.
The antenna is ideal for both indoor and outdoor applications.
Being Bracket mount it is designed to be mounted on a ground plane for optimal performance.
Cable and Connector can be Customed.
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| F/B Ratio | ＞25dB |
| Gain | 14dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 65° |
| Vertical Beam width | 35° |
| Polarization | Vertical |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | ABS |
| Mounting way | Wall Mount |
| Mechanical | |
| Antenna Dimension | 207x180x45mm |
| Weight | 500g |
| Impedance | -40℃ to+80℃ |
| RoHS Compliant | YES |
30cm RG58U cable with N Female connector, come with wall mount bracket, no technical experience required, easy to install.
Indoor panel antennas are considered "semi-directional", where they aim to provide a moderate 14 dBi gain.
Directional means that the antenna has to roughly face the direction of the nearest transmission tower.
