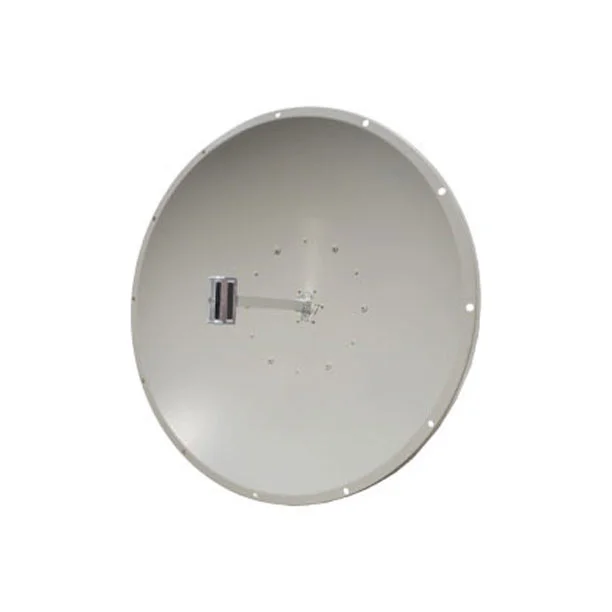

This is a high performance broadband solid dish antenna. Because of its' superb electric performance and mechanical stability, the parabolic dish antenna can be used in a wide variety of highoerformance 2.4 GHz wif wireless applications. This antenna features 27 dBi of gain with a 6.5° horizontal beam-width and 6.5°vertical beam-width. lt is fed via a N-Female connectors, Rugged and WeatherproofThe reflector dish of the antenna is constructed from high quality aluminum which gives it superior strength. The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics. The small diameter of the dish helps minimize wind loading.
| Electrical | |
| Frequency Range | 2400-2483 MHz |
| Band width | 83MHz |
| F/B Ratio | ＞30dB |
| Gain | 27dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 6.5° |
| Vertical Beam width | 6.5° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 200W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Length | 30cm |
| Cable Type | LMR240 |
| Antenna Radome Material | Aluminium alloy |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø50~Ø70mm |
| Mechanical | |
| Antenna Dimension | Ø1200mm |
| Weight | 20KG |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
Click to see other 2.4 GHz dish antenna you may be interested in.
The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics.
The reflector dish of these antennas are constructed from high quality aluminum which gives them superior strength.
This high grade antenna has been designed with operation on the Optus 2400-2483MHz network and backhaul applications.
