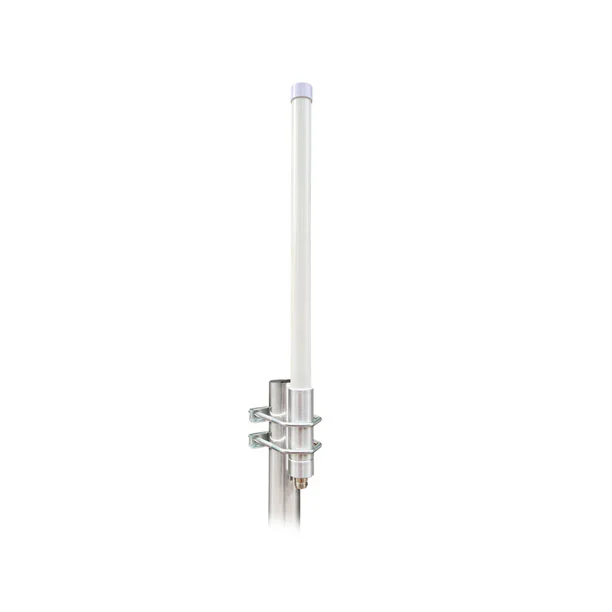

This omnidirectional WiFi MIMO antenna is designed for the 2.4&5 GHz frequency band.
The enclosure of the antenna is made of heavy fiberglass.
The robust, light weight and UV resistant construction is weatherproof which makes the antenna usable for in- and outdoor appliances.
The antenna is designed for mast/pole or wall handle installation.
A mounting kit installation(angle bracket and u-clamp for 30-50mm diameter handles) is included.
| Electrical | |
| Frequency Range | 2400-2483/5150-5850 MHz |
| Band width | 83/700MHz |
| Gain | 6/8dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 22° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Φ40-Φ50 mm |
| Mechanical | |
| Antenna Dimension | Φ25x680mm |
| Weight | 450g |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
This omni antenna's construction features a rugged white fiberglass radome for durability, aesthetics and long service life.
The antenna is suitable for indoor and outdoor use and can be mounted on walls or poles.
Made with very high quality materials, construction grade aluminium alloy, UV-protected plastic cover and zinc galvanized U-bolt.
