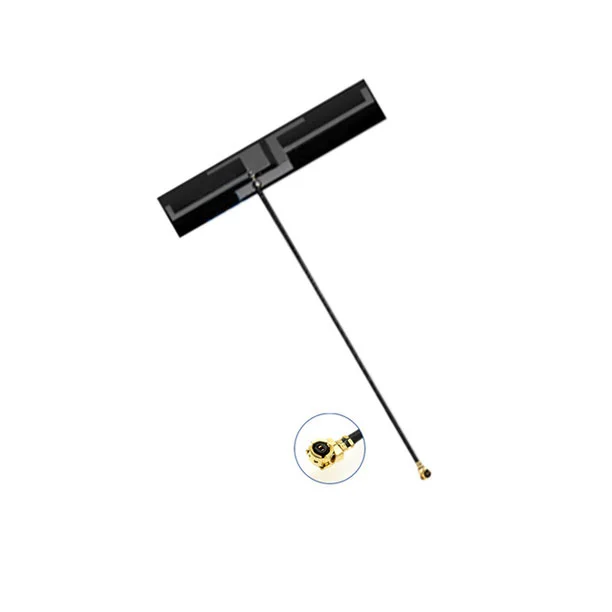

Flexible Printed Circuit Board Antennas, or FPC Antennas are flexible, low profile, highly reliable and economical antennas that are widely used in the wireless industry.
It can be used to develop various types of antennas including monopoles,dipoles and printed F antennas.
FPC Series provides ground plane independent dipole embedded antenna solutions comparable in performance to external antennas. The flexibility and adhesive backing makes the FPC antenna family easy to mount in unique and custom enclosures, while enabling an environmentally sealed enclosure and protection from tampering or accidental antenna damage.
It can be bent so that they can be embedded inside a small device like an IoT module where circuit board space is at a premium and a surface mount antenna can not be placed.
The cable length of FPC antennas can be customized making them easy to connect to a module.
| Electrical | |
| Frequency Range | 2400-2500/5150-5800MHz |
| Gain | 2.5/3dBi |
| V.S.W.R | ≤2.0 |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | RF 1.13 |
| Cable Length | 100mm |
| Antenna Radome Material | FPC |
| Mechanical | |
| Dimensions | 42x7x0.3mm |
| Weight | 0.1g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
This type dual band antenna embedded antenna addresses the challenges facing today's product designers.
Based on a flexible substrate for easier integration, high performance and isolation characteristics, this antenna offers better connectivity.
This antenna is offered in many standard cable lengths and it is designed to perform efficiently for long cable lengths, when the antenna is far from the ground plane.
